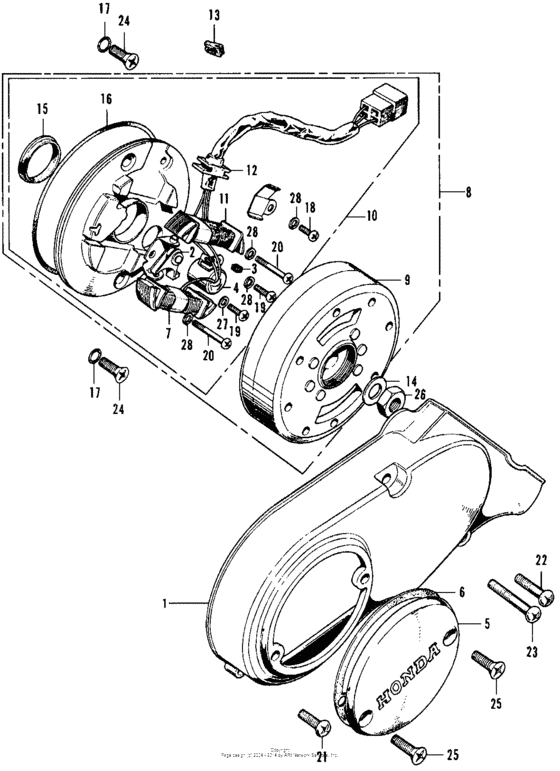

Left crankcase cover + alternator Diagram Honda CT70
- Model code
- CT70 A
- Sales region
- USA
- Frame
- CT70100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-120-020 Cover, l. crankcaseUse up to Engine SN 126800 |
11341-120-020 |
from US $54.07 |
||
|
1
|
1
11341-165-750
Cover, l. crankcase
|
11341-165-750 |
— | ||
|
2
|
2
30202-041-015 Points |
30202-041-015 |
from US $28.02 |
||
|
3
|
3
30205-041-005 Felt, oil |
30205-041-005 |
from US $3.70 |
||
|
4
|
4
30250-041-005 Condenser |
30250-041-005 |
from US $19.18 |
||
|
5
|
5
30371-098-750 Cover,pointUse from Engine SN 126801 |
30371-098-750 |
US $22.40 |
||
|
6
|
6
30374-040-020 Gasket, points coverUse from Engine SN 126801 |
30374-040-020 |
from US $3.85 |
||
|
7
|
7
30540-041-005
Coil, primary
|
30540-041-005 |
— | ||
|
8
|
8
31100-098-671
A.c generator
|
31100-098-671 |
— | ||
|
9
|
9
31121-045-015
Flywheel
|
31121-045-015 |
— | ||
|
10
|
10
31141-098-672
Stator assy.
|
31141-098-672 |
— | ||
|
11
|
11
31631-045-005
Coil light
|
31631-045-005 |
— | ||
|
12
|
12
32971-035-000 Grommet, cord |
32971-035-000 |
from US $3.33 |
||
|
13
|
13
32981-035-000 Grommet |
32981-035-000 |
US $2.44 |
||
|
14
|
14
90426-035-000 Washer, magnet fixing |
90426-035-000 |
from US $2.66 |
||
|
15
|
15
91202-GK4-722 Oil seal (18.9x30x5) |
91202-GK4-722 |
from US $4.59 |
||
|
16
|
16
91301-035-003 O-ring (107x2) |
91301-035-003 |
from US $3.20 |
||
|
17
|
17
91317-171-003 O-ring (6x1.7) |
91317-171-003 |
from US $2.66 |
||
|
18
|
18
93500-040-050-A Screw,pan,4x5 |
93500-040-050-A |
US $7 |
||
|
18
|
18
93500-040-060-A ScrewPAN, 4X6 |
93500-040-060-A |
from US $0.37 |
||
|
19
|
19
93500-040-100-A ScrewPAN, 4X10 |
93500-040-100-A |
from US $0.37 |
||
|
20
|
20
93500-040-250-A Screw, pan, 4x25 |
93500-040-250-A |
from US $0.37 |
||
|
21
|
21
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
22
|
22
93500-060280A Screw, pan, 6x28 |
93500-060280A |
from US $0.52 |
||
|
23
|
23
93500-060350A Screw, pan, 6x35 |
93500-060350A |
from US $0.52 |
||
|
24
|
24
93600-060-160-A ScrewFLAT, 6X16 |
93600-060-160-A |
from US $0.44 |
||
|
25
|
25
93700-050-120-A Screw, oval (5x12) |
93700-050-120-A |
from US $0.37 |
||
|
26
|
26
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
||
|
27
|
27
94101-04000 WasherPLAIN, 4MM |
94101-04000 |
from US $0.37 |
||
|
28
|
28
94111-04000 WasherSPRING, 4MM |
94111-04000 |
from US $0.37 |
