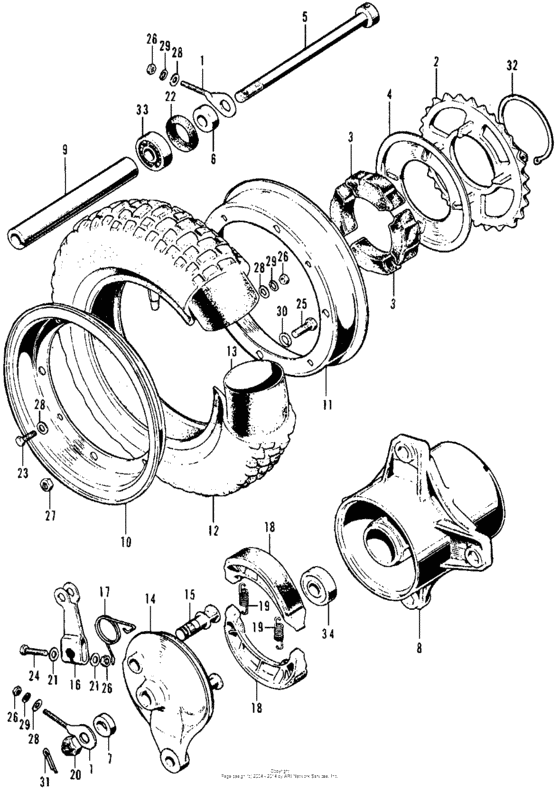

Rear wheel Diagram Honda CT70
- Model code
- CT70 A
- Sales region
- USA
- Frame
- CT70100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06450-178-932 Shoe set, brake |
06450-178-932 |
from US $33.07 |
||
|
1
|
1
9501410010 Adjuster s, r. chain |
9501410010 |
from US $1.63 |
||
|
1
|
1
42701-098-853ZA
Rim,wheel*nh-35m*
|
42701-098-853ZA |
— | ||
|
2
|
2
41201-GB2-000 Sprkt,finaldriven |
41201-GB2-000 |
US $123.76 |
||
|
3
|
3
41241-051-000 Damper, rr. wheel |
41241-051-000 |
from US $5.18 |
||
|
4
|
4
41245-051-000 Cover, rr |
41245-051-000 |
from US $5.18 |
||
|
5
|
5
44301-074-000
Axle,front wheel
Use up to Frame SN 226904 |
44301-074-000 |
— | ||
|
5
|
5
42301-098-000
Axle,rear wheel
Use from Frame SN 226905 |
42301-098-000 |
— | ||
|
6
|
6
42304-098-000 Collar,rear wheelUse up to Frame SN 129284 |
42304-098-000 |
from US $4.29 |
||
|
7
|
7
42313-098-000 Collar,panel side |
42313-098-000 |
from US $4 |
||
|
8
|
8
42601-098-010ZB
Hub comp.*nh-35m*
Use up to Frame SN 247354 |
42601-098-010ZB |
— | ||
|
9
|
9
42620-098-000 Collar,rear,axle |
42620-098-000 |
US $9.76 |
||
|
10
|
10
42701-098-853ZA
Rim,wheel*nh-35m*
|
42701-098-853ZA |
— | ||
|
11
|
11
42702-098-853ZA
Rim,wheel*nh-35m*
|
42702-098-853ZA |
— | ||
|
12
|
12
42711-098-671
Tire (4.00-10) (BS)
|
42711-098-671 |
— | ||
|
12
|
12
42711-098-673 TIRE (4.00-10) (Nitto) |
42711-098-673 |
US $127.84 |
||
|
13
|
13
42712-098-691 Tube,wheel |
42712-098-691 |
US $26.11 |
||
|
14
|
14
43100-098-950
Panel,rear brake
|
43100-098-950 |
— | ||
|
15
|
15
43141-098-000
Cam,rear,brake
|
43141-098-000 |
— | ||
|
16
|
16
43410-098-000 Arm,rr.brake |
43410-098-000 |
US $19.30 |
||
|
17
|
17
43413-098-670
Spring,return
|
43413-098-670 |
— | ||
|
18
|
18
45120-001-010
Shoe, brake
|
45120-001-010 |
— | ||
|
19
|
19
45133-028-000 Spring, brake shoe |
45133-028-000 |
from US $2.15 |
||
|
20
|
20
90305-439-930 Nut, fr. axleUse from Frame SN 226905 |
90305-439-930 |
from US $8.52 |
||
|
20
|
20
90353-045-000 Nut,self lockUse up to Frame SN 226904 |
90353-045-000 |
from US $4.44 |
||
|
21
|
21
90525-001-000 WasherRR. BRAKE ARM |
90525-001-000 |
from US $1.78 |
||
|
22
|
22
90753-051-003 Oil seal (26x37x6) |
90753-051-003 |
from US $6.07 |
||
|
23
|
23
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
23
|
23
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
23
|
23
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
24
|
24
92000-06036 Bolt,hex 6x36 |
92000-06036 |
from US $0.52 |
||
| replacement | |||||
|
24
|
24
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
24
|
24
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
25
|
25
92101-08025-0A Bolt, hex., 8x25 |
92101-08025-0A |
from US $0.59 |
||
|
26
|
26
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
27
|
27
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
28
|
28
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
29
|
29
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
30
|
30
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
31
|
31
94201-30250 PinSPLIT, 3.0X25 Use from Frame SN 226905 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
31
|
31
9420130450 Pin, cotter (3.0x45)Use from Frame SN 226905 |
9420130450 |
from US $0.44 |
||
|
31
|
31
9420130450 Pin, cotter (3.0x45)Use from Frame SN 226905 |
9420130450 |
from US $0.44 |
||
|
32
|
32
94510-50000 Circlip,50mm |
94510-50000 |
US $1.48 |
||
|
33
|
33
96140-630-101-0
Bearing (6301u)
|
96140-630-101-0 |
— | ||
|
34
|
34
96140-630-101-0
Bearing (6301u)
|
96140-630-101-0 |
— | ||
