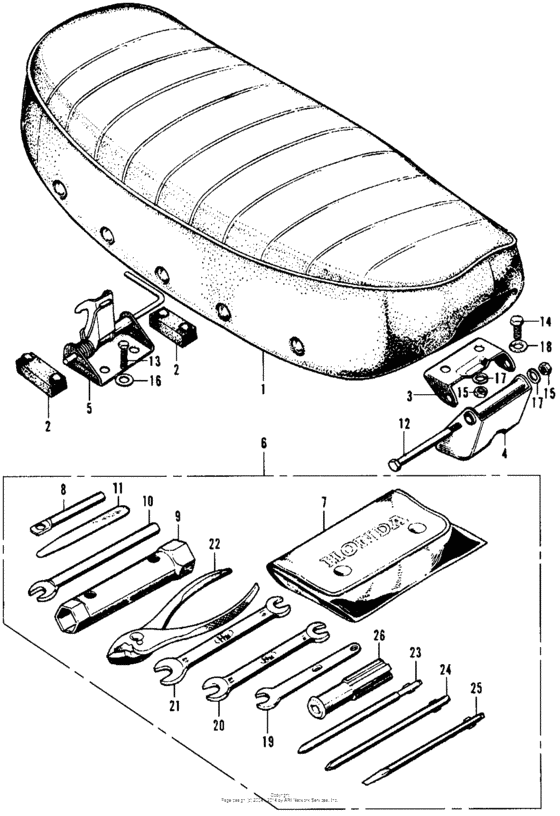

Seat + tools Diagram Honda CT70
- Model code
- CT70 A
- Sales region
- USA
- Frame
- CT70100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77200-098-920-A
Seat,double
|
77200-098-920-A |
— | ||
|
2
|
2
77205-286-000 Rubber b, seat setting |
77205-286-000 |
from US $6.66 |
||
|
3
|
3
77210-126-000 Bracket a,seat |
77210-126-000 |
from US $7.10 |
||
|
4
|
4
77211-098-000 Bracket b,seat |
77211-098-000 |
from US $7.40 |
||
|
5
|
5
77230-098-000
Comp,catch,seat
|
77230-098-000 |
— | ||
|
6
|
6
89010-098-670
Tool assy
|
89010-098-670 |
— | ||
|
7
|
7
99008-01600 BagTOOL, 160MM |
99008-01600 |
from US $2.29 |
||
|
8
|
8
89215-001-000
Wrench,soket
|
89215-001-000 |
— | ||
|
8
|
8
89215-107-000
Wrench,soket
|
89215-107-000 |
— | ||
|
9
|
9
89216-045-010 Wrench, spark plug |
89216-045-010 |
from US $8.98 |
||
|
10
|
10
89218-028-000 Bar b, handle |
89218-028-000 |
US $13.72 |
||
|
10
|
10
9900502000 Bar b, handle |
9900502000 |
from US $2.96 |
||
|
11
|
11
89231-001-000
Gauge, tappet
|
89231-001-000 |
— | ||
|
12
|
12
90101-001-010 Pin, seat hinge |
90101-001-010 |
US $4.22 |
||
|
13
|
13
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
14
|
14
92101-08016-0A Bolt, hex., 8x16 |
92101-08016-0A |
from US $0.52 |
||
|
15
|
15
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
16
|
16
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
17
|
17
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
18
|
18
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
19
|
19
99001-09000 Wrench 9mm |
99001-09000 |
US $3.11 |
||
|
20
|
20
99001-10120 Spanner |
99001-10120 |
from US $3.55 |
||
|
21
|
21
99001-14170 Spanner14X17 |
99001-14170 |
from US $4.59 |
||
|
22
|
22
99002-13500
Pliers
|
99002-13500 |
— | ||
| replacement | |||||
|
22
|
22
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
|
23
|
23
99003-10000 Driver1PLUS SCREW(NO.2) |
99003-10000 |
from US $1.41 |
||
|
24
|
24
9900320000 Driver 2, plus screw (no.3) |
9900320000 |
from US $1.55 |
||
|
25
|
25
99003-30000 Driver 3MINUS SCREW (NO.2) |
99003-30000 |
from US $1.41 |
||
|
26
|
26
99003-50000 GripSCREW DRIVER |
99003-50000 |
from US $1.70 |
||
