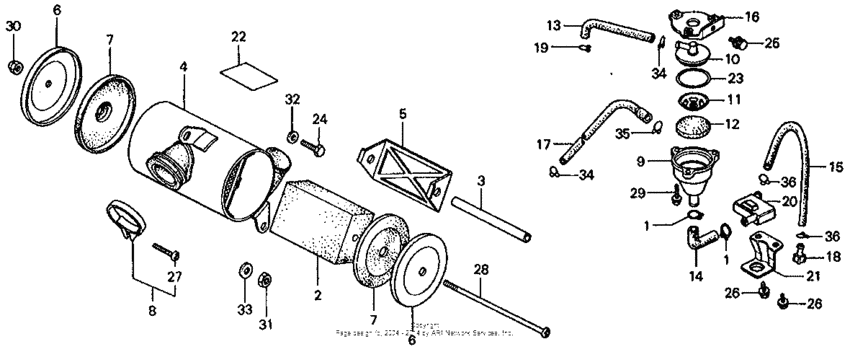

Air cleaner Diagram Honda CT70
- Year
- 1976
- Model code
- CT70 A
- Sales region
- USA
- Frame
- CT702500004 - CT702505533
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
17211-098-771 Element,cleaner |
17211-098-771 |
from US $5.77 |
||
|
3
|
3
17212-098-000 Pipe,air cleaner |
17212-098-000 |
from US $4.44 |
||
|
4
|
4
17221-126-000-B
Case,air cleaner
|
17221-126-000-B |
— | ||
|
5
|
5
17222-098-771 Plate,element.set |
17222-098-771 |
from US $6.48 |
||
|
6
|
6
17231-098-950ZA
Cover,air c*nh-1*
|
17231-098-950ZA |
— | ||
|
7
|
7
17252-098-771 Packing,case |
17252-098-771 |
from US $10.51 |
||
|
8
|
8
16223-GBF-830 Band, insulator |
16223-GBF-830 |
from US $6.66 |
||
|
22
|
22
87508-120-000 Label |
87508-120-000 |
from US $8.14 |
||
|
24
|
24
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
27
|
27
93500-040-250-A Screw, pan, 4x25 |
93500-040-250-A |
from US $0.37 |
||
|
28
|
28
93500-061-351-B Screw,pan,6x135 |
93500-061-351-B |
from US $1.63 |
||
|
30
|
30
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
31
|
31
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
32
|
32
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
33
|
33
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
