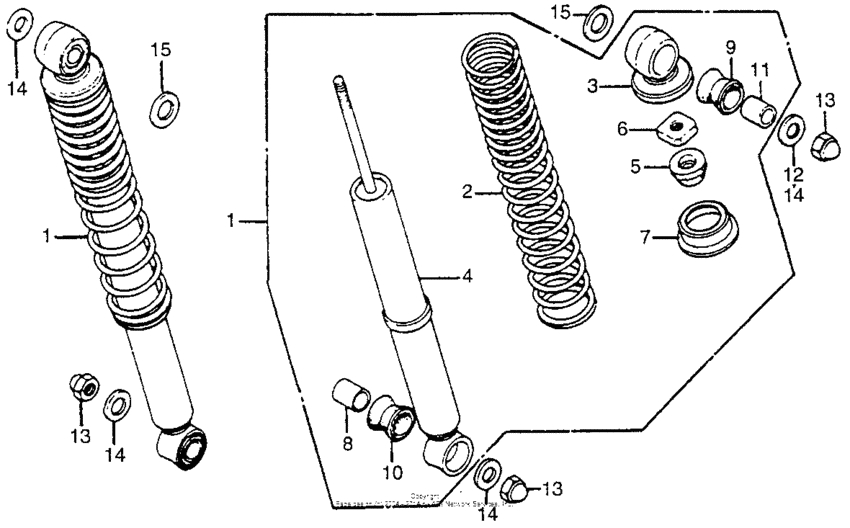

Rear shock absorber Diagram Honda CT70
- Year
- 1981
- Model code
- CT70 A
- Sales region
- USA
- Frame
- JH2DD010*BS200002 - JH2DD010*BS206091
- Engine Capacity
- 70
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-126-773
Shock assy., rr.
Use up to Frame SN BS206091 |
52400-126-773 |
— | ||
|
2
|
2
52401-126-770
Spring,rr.cushion
|
52401-126-770 |
— | ||
|
3
|
3
52403-126-771
Metal comp.,upper
|
52403-126-771 |
— | ||
|
4
|
4
52400-126-773
Shock assy., rr.
|
52400-126-773 |
— | ||
|
5
|
5
52475-125-771
Rubber, rr
|
52475-125-771 |
— | ||
|
6
|
6
52482-125-771
Nut, rr.
|
52482-125-771 |
— | ||
|
7
|
7
52485-131-003 Seat,cush.spring |
52485-131-003 |
US $9.39 |
||
|
8
|
8
52486-124-832 Collar,cush rub |
52486-124-832 |
US $6.02 |
||
|
9
|
9
52495-126-771 Bush,upper rubber |
52495-126-771 |
US $4.62 |
||
|
10
|
10
52487-125-771
Bush,rubber
|
52487-125-771 |
— | ||
|
11
|
11
52488-125-771 Collar,cush rub |
52488-125-771 |
US $6.79 |
||
|
12
|
12
90529-126-770 Washer, 10.5mmUse from Frame SN BS200342 |
90529-126-770 |
from US $2.59 |
||
|
13
|
13
94021-100000S Nut, cap, 10mm |
94021-100000S |
from US $0.81 |
||
|
14
|
14
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
15
|
15
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
