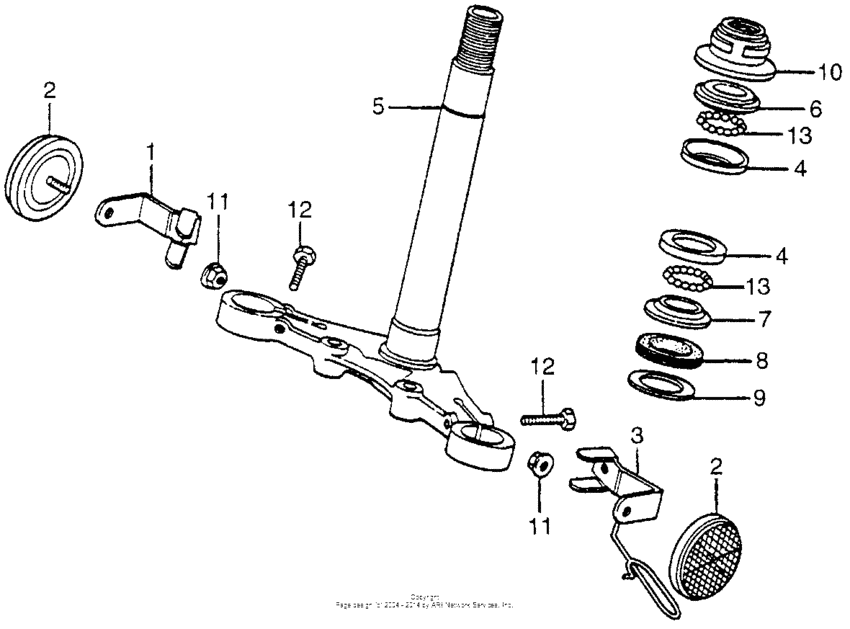

Steering stem Diagram Honda CT70
- Year
- 1982
- Model code
- CT70 A
- Sales region
- USA
- Frame
- JH2DD010*CS300007 - JH2DD010*CS300007
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33740-126-770
Stay, fr.
|
33740-126-770 |
— | ||
|
2
|
2
33741-102-870 Reflector, fr. |
33741-102-870 |
from US $28.70 |
||
|
3
|
3
33750-126-770
Stay, l. fr.
|
33750-126-770 |
— | ||
|
4
|
4
50301-041-010 Race |
50301-041-010 |
from US $7.70 |
||
|
5
|
5
53200-126-930ZF
Stem, steering *nh1*
|
53200-126-930ZF |
— | ||
|
6
|
6
53211-028-010 Race, steering cone |
53211-028-010 |
from US $7.55 |
||
|
7
|
7
53212-030-010 Race, steering cone |
53212-030-010 |
from US $7.40 |
||
|
8
|
8
53214-001-010 Dust seal |
53214-001-010 |
from US $2.44 |
||
| replacement | |||||
|
8
|
8
53214-GJG-C20 DUST SEAL |
53214-GJG-C20 |
from US $2.69 |
||
|
9
|
9
53215-001-000 Washer |
53215-001-000 |
from US $1.92 |
||
|
10
|
10
53220-098-670 Thread |
53220-098-670 |
from US $10.21 |
||
|
11
|
11
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
12
|
12
95400-080-280-0 Bolt,hex.,8x28 |
95400-080-280-0 |
US $0.59 |
||
|
13
|
13
96211-06000 BallSTEEL, #6(3/16) |
96211-06000 |
from US $0.15 |
||
