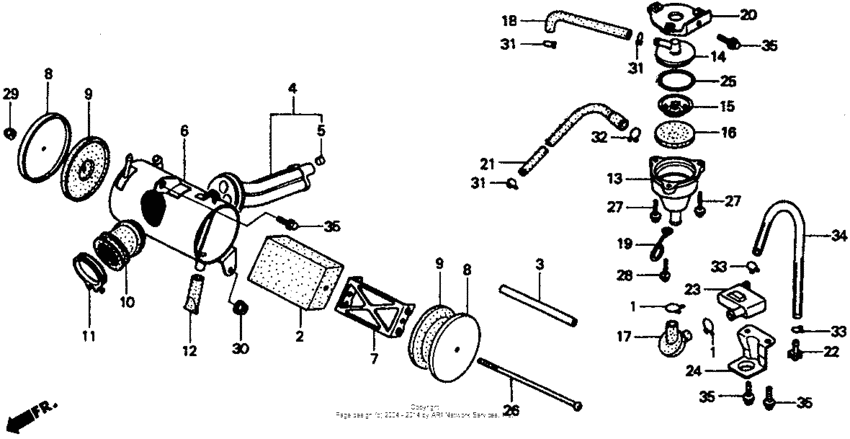

Air cleaner Diagram Honda CT70
- Year
- 1992
- Model code
- CT70 A
- Sales region
- USA
- Frame
- JH2DB010*NK100001 - JH2DB010*NK101762
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15771-551-000 ClipOIL DRAIN TUBE |
15771-551-000 |
from US $3.77 |
||
|
2
|
2
17211-HB2-000 Element,air clean |
17211-HB2-000 |
from US $7.31 |
||
|
3
|
3
17212-098-000 Pipe,air cleaner |
17212-098-000 |
from US $4.44 |
||
|
4
|
4
17215-098-900
Duct,air cleaner
|
17215-098-900 |
— | ||
|
5
|
5
17219-098-900 Plug,air cleaner |
17219-098-900 |
US $3.91 |
||
|
6
|
6
17221-GAN-670 Housing, air cleaner |
17221-GAN-670 |
US $53.30 |
||
|
7
|
7
17222-HB2-000
Plate,element set
|
17222-HB2-000 |
— | ||
|
8
|
8
17231-045-030 Cover,case |
17231-045-030 |
from US $11.40 |
||
|
9
|
9
17252-098-771 Packing,case |
17252-098-771 |
from US $10.51 |
||
|
10
|
10
17253-098-830 Tube,air cleaner |
17253-098-830 |
from US $18.85 |
||
|
11
|
11
17255-HB2-003 Band, air cleaner connecting tube |
17255-HB2-003 |
from US $9.74 |
||
|
11
|
11
17255-HB3-010
Band, a/clnr tube
|
17255-HB3-010 |
— | ||
|
12
|
12
17358-170-000 Tube, drain |
17358-170-000 |
from US $3.11 |
||
|
13
|
13
17361-419-670 Body |
17361-419-670 |
from US $19.50 |
||
|
14
|
14
17362-098-850 Cap |
17362-098-850 |
US $11.25 |
||
|
15
|
15
17363-419-670 Holder, element |
17363-419-670 |
from US $4.29 |
||
|
16
|
16
17364-419-000 Element |
17364-419-000 |
US $4.17 |
||
|
17
|
17
17365-GAN-670 Tube, drain |
17365-GAN-670 |
US $11.59 |
||
|
18
|
18
17365-098-850
Tube (5.3x200)
|
17365-098-850 |
— | ||
|
19
|
19
17367-GAN-670 Guide, tube |
17367-GAN-670 |
US $6.36 |
||
|
20
|
20
17368-098-850 Stay |
17368-098-850 |
US $11.08 |
||
|
21
|
21
17369-098-850 Tube, breather |
17369-098-850 |
US $12.16 |
||
|
22
|
22
17370-419-700 Plug, breather tube |
17370-419-700 |
from US $3.48 |
||
|
23
|
23
17551-098-850
Tank, storage
|
17551-098-850 |
— | ||
|
24
|
24
50245-098-850
Stay, storage tank
|
50245-098-850 |
— | ||
|
25
|
25
91305-419-670 O-ring (47x1.9) |
91305-419-670 |
US $2.67 |
||
|
26
|
26
93500-061-351-B Screw,pan,6x135 |
93500-061-351-B |
from US $1.63 |
||
|
27
|
27
93891-0401600 Screw-washer, 4x16 |
93891-0401600 |
from US $0.44 |
||
|
28
|
28
93891-0402000 Screw-washer (4x20) |
93891-0402000 |
US $0.44 |
||
|
29
|
29
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
30
|
30
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
31
|
31
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
32
|
32
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
33
|
33
95002-412-000-8 ClampTUBE (D12) |
95002-412-000-8 |
from US $0.74 |
||
|
34
|
34
95003-230-0860M
Bulk hose, vinyl
|
95003-230-0860M |
— | ||
|
35
|
35
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
