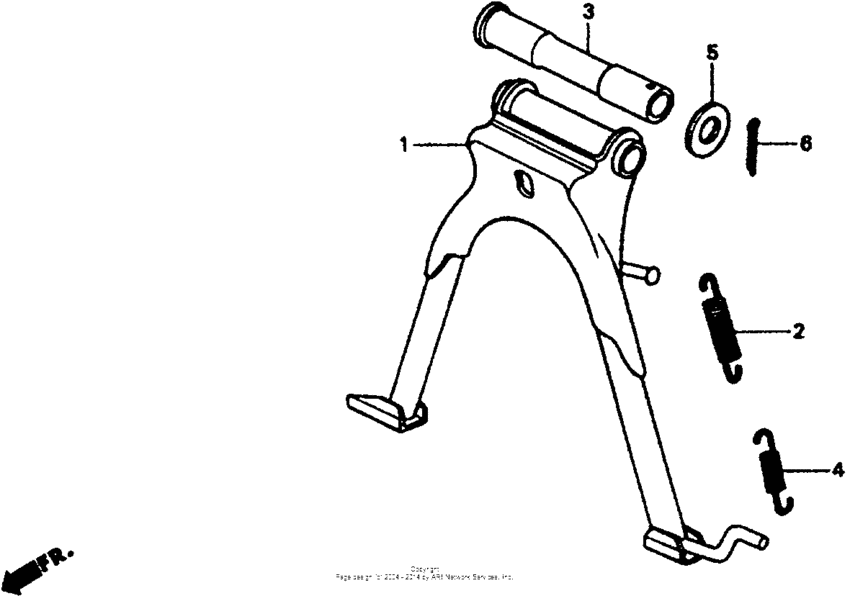

Stand Diagram Honda CT70
- Year
- 1994
- Model code
- CT70 A
- Sales region
- USA
- Frame
- JH2DB010*RK300001 -
- Engine Capacity
- 70
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50500-126-900
Stand comp.,main
|
50500-126-900 |
— | ||
|
2
|
2
50510-126-900
Spring c,main sta
|
50510-126-900 |
— | ||
|
3
|
3
50512-126-900 Pipe,main stand p |
50512-126-900 |
US $12.03 |
||
|
4
|
4
50521-126-900
Sub spring,main s
|
50521-126-900 |
— | ||
|
5
|
5
90521-028-000 Washer, 17x22 |
90521-028-000 |
from US $2.53 |
||
|
6
|
6
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
6
|
6
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
6
|
6
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
