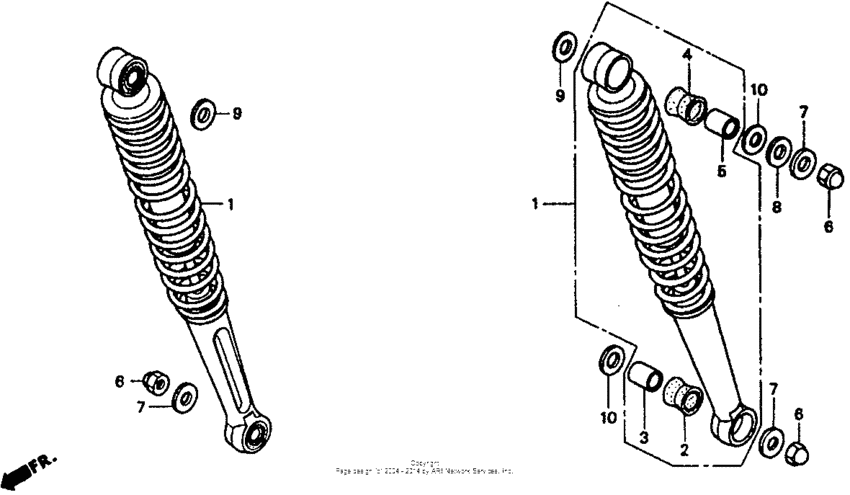

Rear shock absorber Diagram Honda CT70
- Year
- 1993
- Model code
- CT70 AC
- Sales region
- USA
- Frame
- JH2DB011*PK200001 -
- Engine Capacity
- 70
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-GAN-671
Shock absorber, rr.
|
52400-GAN-671 |
— | ||
|
2
|
2
52485-KR3-003 Bush, rr. shock |
52485-KR3-003 |
from US $6.36 |
||
|
3
|
3
52486-GA7-003 Collar, rubber bush |
52486-GA7-003 |
from US $2.57 |
||
|
4
|
4
52495-126-771 Bush,upper rubber |
52495-126-771 |
US $4.62 |
||
|
5
|
5
52496-040-000 Rubber, cushion |
52496-040-000 |
from US $4.07 |
||
|
6
|
6
90201-HA0-000 Nut (10mm) |
90201-HA0-000 |
from US $5.03 |
||
|
7
|
7
90527-230-000 Washer, plain, 10.3mm |
90527-230-000 |
from US $2.87 |
||
|
8
|
8
90529-126-770 Washer, 10.5mm |
90529-126-770 |
from US $2.59 |
||
|
9
|
9
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
||
|
10
|
10
9410310000 Washer, plain, 10mm |
9410310000 |
from US $0.55 |
