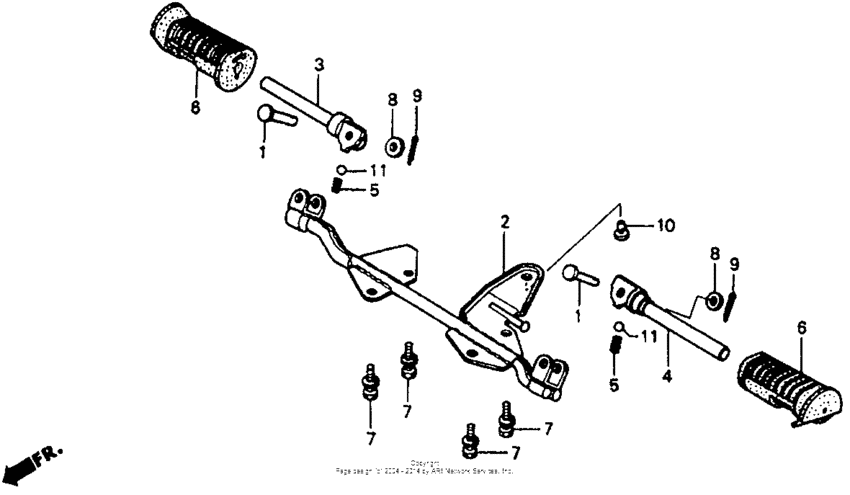

Step Diagram Honda CT70
- Year
- 1994
- Model code
- CT70 AC
- Sales region
- USA
- Frame
- JH2DB011*RK300001 -
- Engine Capacity
- 70
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50603-033-010 Pin, step bar joint |
50603-033-010 |
from US $3.70 |
||
|
2
|
2
50610-126-900
Bar comp.,step
|
50610-126-900 |
— | ||
|
3
|
3
50615-098-900
Arm comp.,r.step
|
50615-098-900 |
— | ||
|
4
|
4
50616-098-900
Arm comp.,l.step
|
50616-098-900 |
— | ||
|
5
|
5
50619-098-000 Spring,arm, |
50619-098-000 |
US $3.71 |
||
|
6
|
6
50660-GB2-000 Rub,step |
50660-GB2-000 |
from US $12.10 |
||
|
7
|
7
93402-0802000 Bolt-washer (8x20) |
93402-0802000 |
from US $0.67 |
||
|
8
|
8
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
9
|
9
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
10
|
10
9501162000 Rubber b, stand stopper |
9501162000 |
from US $0.74 |
||
|
11
|
11
96211-10000 Ball |
96211-10000 |
from US $0.22 |
