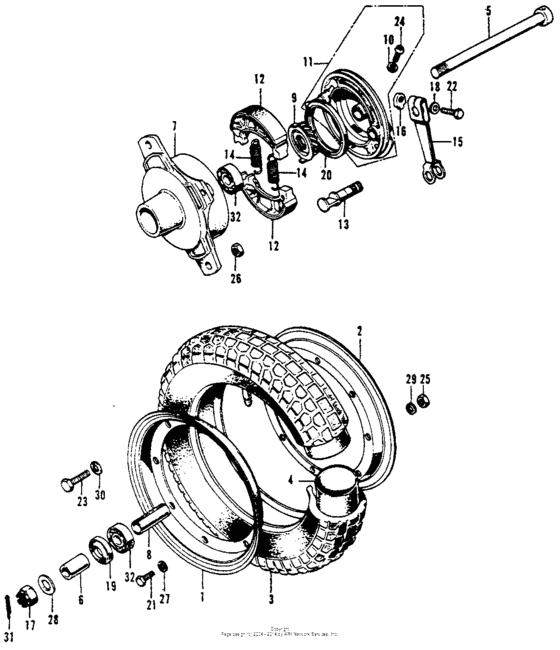

Front wheel Diagram Honda CT70
- Model code
- CT70H A
- Sales region
- USA
- Frame
- CT70H100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42701-098-853ZA
Rim,wheel*nh-35m*
|
42701-098-853ZA |
— | ||
|
2
|
2
42702-098-853ZA
Rim,wheel*nh-35m*
|
42702-098-853ZA |
— | ||
|
3
|
3
42711-098-671
Tire (4.00-10) (BS)
|
42711-098-671 |
— | ||
|
3
|
3
42711-098-673 TIRE (4.00-10) (Nitto) |
42711-098-673 |
US $127.84 |
||
|
4
|
4
42712-GC8-005 Tube, tire (3.50-10) |
42712-GC8-005 |
US $13.01 |
||
|
4
|
4
42712-098-691 Tube,wheel |
42712-098-691 |
US $26.11 |
||
|
5
|
5
44301-045-010 Axle, fr. wheelUse up to Frame SN 143000 |
44301-045-010 |
US $12.97 |
||
|
5
|
5
44301-098-000
Axle,front wheel
Use from Frame SN 143001 |
44301-098-000 |
— | ||
|
6
|
6
44311-045-670 Colr, fr. wheel side |
44311-045-670 |
from US $8.06 |
||
|
7
|
7
44600-098-000AU Hub,front wheelUse up to Frame SN 156720 |
44600-098-000AU |
US $335.12 |
||
|
7
|
7
44600-098-010ZB
Hub, fr. *nh35m*
Use from Frame SN 156721 |
44600-098-010ZB |
— | ||
|
8
|
8
44602-098-000 Collar,distance |
44602-098-000 |
US $5.92 |
||
|
9
|
9
44804-098-950
Gear,speedometer
|
44804-098-950 |
— | ||
|
10
|
10
44820-001-000
Washer, gear box
|
44820-001-000 |
— | ||
|
11
|
11
45010-098-670
Superceded
|
45010-098-670 |
— | ||
| replacement | |||||
|
11
|
11
45010-098-950
Panel, fr. brake
|
45010-098-950 |
— | ||
|
11
|
11
45010-098-950
Panel, fr. brake
|
45010-098-950 |
— | ||
|
12
|
12
45120-001-010
Shoe, brake
|
45120-001-010 |
— | ||
|
13
|
13
45131-030-000 Cam, front brake |
45131-030-000 |
US $11.40 |
||
|
14
|
14
45133-028-000 Spring, brake shoe |
45133-028-000 |
from US $2.15 |
||
|
15
|
15
45410-098-950
Arm,front brake
|
45410-098-950 |
— | ||
|
16
|
16
45436-001-000 Nut, fr. brake arm setting |
45436-001-000 |
from US $2.22 |
||
|
17
|
17
90305-439-930 Nut, fr. axleUse from Frame SN 143001 |
90305-439-930 |
from US $8.52 |
||
|
17
|
17
90353-045-000 Nut,self lockUse up to Frame SN 142000 |
90353-045-000 |
from US $4.44 |
||
|
18
|
18
90525-001-000 WasherRR. BRAKE ARM |
90525-001-000 |
from US $1.78 |
||
|
19
|
19
90755-229-003 Oil seal (21x37x7) |
90755-229-003 |
from US $4.07 |
||
|
20
|
20
91251-030-003 Oil seal, 47x58x7 |
91251-030-003 |
US $10.51 |
||
|
21
|
21
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
21
|
21
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
21
|
21
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
22
|
22
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
23
|
23
92101-08025-0A Bolt, hex., 8x25 |
92101-08025-0A |
from US $0.59 |
||
|
24
|
24
93500-06005 Screw,cross 6x5 |
93500-06005 |
US $0.44 |
||
|
25
|
25
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
26
|
26
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
27
|
27
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
28
|
28
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
||
|
29
|
29
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
30
|
30
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
31
|
31
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
31
|
31
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
31
|
31
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
32
|
32
96140-630-101-0
Bearing (6301u)
|
96140-630-101-0 |
— | ||
