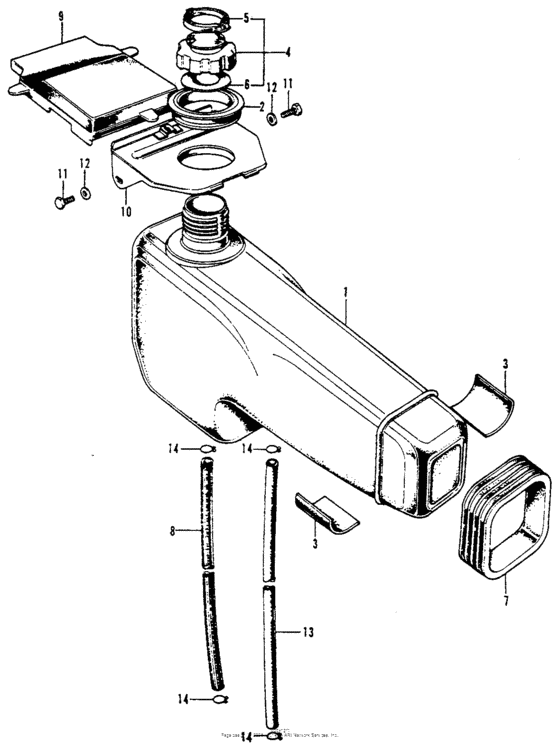

Fuel tank Diagram Honda CT70
- Model code
- CT70H A
- Sales region
- USA
- Frame
- CT70H100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17500-098-305
Tank set,fuel
|
17500-098-305 |
— | ||
|
2
|
2
17512-098-000
Packing,fillernec
|
17512-098-000 |
— | ||
|
3
|
3
17611-098-300
Long,cushion
|
17611-098-300 |
— | ||
|
4
|
4
17620-098-010 Assy,cap fuel |
17620-098-010 |
from US $14.36 |
||
|
5
|
5
17623-098-010
Rubber,breather
|
17623-098-010 |
— | ||
|
6
|
6
17624-896-750
Packing, fuel cap
|
17624-896-750 |
— | ||
|
7
|
7
17670-098-000
Band tank
|
17670-098-000 |
— | ||
|
8
|
8
17681-098-010
Tube,fuel reserve
Use up to Frame SN 150720 |
17681-098-010 |
— | ||
|
9
|
9
50661-098-010ZA Lid,frame b*nh-1* |
50661-098-010ZA |
from US $17.14 |
||
|
10
|
10
50665-098-020-B
Lid,tank
|
50665-098-020-B |
— | ||
|
11
|
11
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
12
|
12
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
13
|
13
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
14
|
14
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
14
|
14
95002-50000 ClipTUBE(C9) |
95002-50000 |
from US $0.37 |
