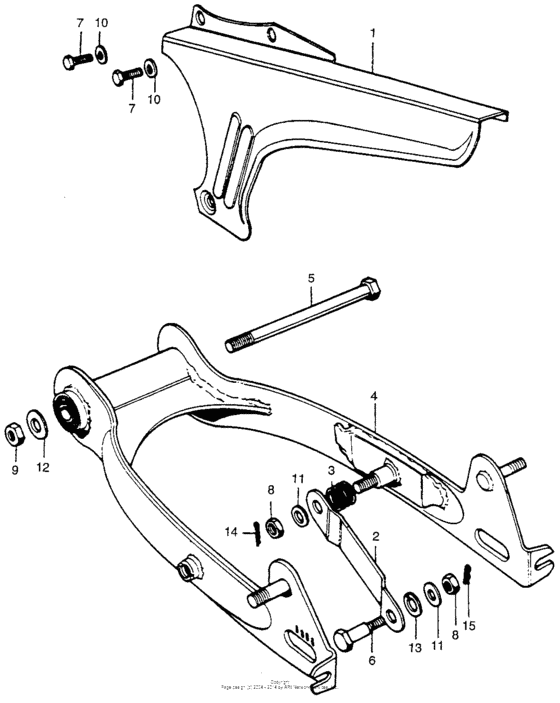

Swingarm + chain case Diagram Honda CT70
- Model code
- CT70H A
- Sales region
- USA
- Frame
- CT70H100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-098-000ZC Case,chain*nh-1* |
40510-098-000ZC |
US $47.06 |
||
|
2
|
2
43431-124-740 Link,rear brake |
43431-124-740 |
US $7.25 |
||
|
3
|
3
43434-250-000 Spring |
43434-250-000 |
from US $2.59 |
||
|
4
|
4
52100-098-020ZF
Swingarm *pb2c*
|
52100-098-020ZF |
— | ||
|
4
|
4
52100-098-020DD
Swingarm, rr. *yr1c*
|
52100-098-020DD |
— | ||
|
4
|
4
52100-098-020DF
Swingarm, rr. *g2c*
|
52100-098-020DF |
— | ||
|
4
|
4
52100-098-670-Z Fork comp,rear |
52100-098-670-Z |
US $492.80 |
||
|
5
|
5
90121-098-970 Bolt,rr.forkpivot |
90121-098-970 |
US $7.70 |
||
|
6
|
6
90127-400-000 Bolt,brake stop. |
90127-400-000 |
from US $7.99 |
||
|
7
|
7
9350006010 Screw, pan, 6x10 |
9350006010 |
from US $0.44 |
||
| replacement | |||||
|
7
|
7
93500-060100A Screw, pan, 6x10 |
93500-060100A |
from US $0.44 |
||
|
8
|
8
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
9
|
9
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
||
|
10
|
10
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
11
|
11
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
12
|
12
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
13
|
13
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
14
|
14
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
15
|
15
94251-08000 PinLOCK, 8MM |
94251-08000 |
from US $0.59 |
||
