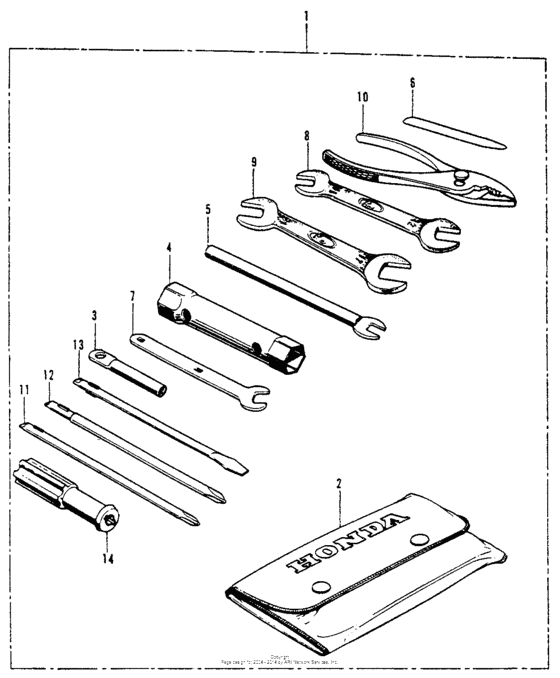

Tool set Diagram Honda CT70
- Model code
- CT70H A
- Sales region
- USA
- Frame
- CT70H100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89010-098-670
Tool assy
|
89010-098-670 |
— | ||
|
2
|
2
99008-01600 BagTOOL, 160MM |
99008-01600 |
from US $2.29 |
||
|
3
|
3
89215-001-000
Wrench,soket
|
89215-001-000 |
— | ||
|
4
|
4
89216-045-010 Wrench, spark plug |
89216-045-010 |
from US $8.98 |
||
|
5
|
5
89218-028-000 Bar b, handle |
89218-028-000 |
US $13.72 |
||
|
5
|
5
9900502000 Bar b, handle |
9900502000 |
from US $2.96 |
||
|
6
|
6
89231-001-000
Gauge, tappet
|
89231-001-000 |
— | ||
|
7
|
7
99001-09000 Wrench 9mm |
99001-09000 |
US $3.11 |
||
|
8
|
8
99001-10120 Spanner |
99001-10120 |
from US $3.55 |
||
|
9
|
9
99001-14170 Spanner14X17 |
99001-14170 |
from US $4.59 |
||
|
10
|
10
99002-13500
Pliers
|
99002-13500 |
— | ||
| replacement | |||||
|
10
|
10
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
|
11
|
11
99003-10000 Driver1PLUS SCREW(NO.2) |
99003-10000 |
from US $1.41 |
||
|
12
|
12
9900320000 Driver 2, plus screw (no.3) |
9900320000 |
from US $1.55 |
||
|
13
|
13
99003-30000 Driver 3MINUS SCREW (NO.2) |
99003-30000 |
from US $1.41 |
||
|
14
|
14
99003-50000 GripSCREW DRIVER |
99003-50000 |
from US $1.70 |
||
