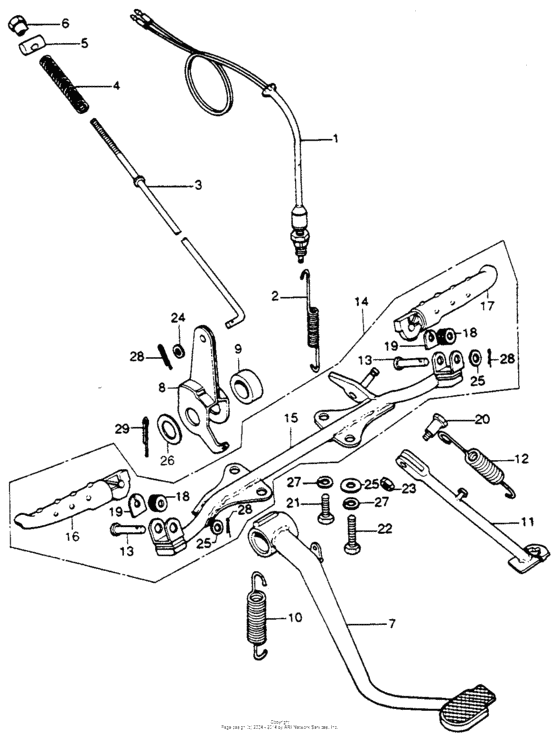

Brake pedal + side stand + step Diagram Honda CT70
- Model code
- CT70HK1 A
- Sales region
- USA
- Frame
- CT70H2000001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35350-098-005 Switch assy,,stop |
35350-098-005 |
US $13.32 |
||
|
2
|
2
35357-046-000 Spring, switch |
35357-046-000 |
from US $2.29 |
||
|
3
|
3
43451-098-770
Rod,rr.brake
|
43451-098-770 |
— | ||
|
4
|
4
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
5
|
5
95015-31001 Joint aBRAKE ARM |
95015-31001 |
from US $0.74 |
||
|
6
|
6
9501541000 Nut a, brake rod adjusting |
9501541000 |
from US $0.81 |
||
|
7
|
7
46500-098-970
Pedal,brake
|
46500-098-970 |
— | ||
|
8
|
8
46510-098-970
Arm brake pedal
|
46510-098-970 |
— | ||
|
9
|
9
46513-098-770
Collar,pedal.sett
|
46513-098-770 |
— | ||
|
10
|
10
46514-086-720 Spring,brk.pedal |
46514-086-720 |
from US $4.29 |
||
|
11
|
11
50530-098-970
Bar,side stand
|
50530-098-970 |
— | ||
|
12
|
12
9501472402 Spring d, side stand |
9501472402 |
from US $1.63 |
||
|
13
|
13
50603-033-010 Pin, step bar joint |
50603-033-010 |
from US $3.70 |
||
|
14
|
14
50610-098-970-B
Bar assy.,step
|
50610-098-970-B |
— | ||
|
15
|
15
50611-098-970-B
Bar, step *nh1*
|
50611-098-970-B |
— | ||
|
16
|
16
50615-098-970-B
Arm, r. step *nh1*
|
50615-098-970-B |
— | ||
|
17
|
17
50616-098-970-B
Arm, l. step *nh1*
|
50616-098-970-B |
— | ||
|
18
|
18
50619-098-970
Spring, step arm
|
50619-098-970 |
— | ||
|
19
|
19
50628-098-970
Stopper, step arm
|
50628-098-970 |
— | ||
|
20
|
20
90108-223-000 Bolt |
90108-223-000 |
from US $5.33 |
||
|
21
|
21
92101-08020-0A BoltHEX., 8X20 |
92101-08020-0A |
from US $0.52 |
||
|
22
|
22
92101-08025-0A Bolt, hex., 8x25 |
92101-08025-0A |
from US $0.59 |
||
|
23
|
23
94002-100-000-S NutHEX., 10MM |
94002-100-000-S |
from US $0.55 |
||
|
24
|
24
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
25
|
25
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
26
|
26
94101-14000 Washer, plain, 14mm |
94101-14000 |
from US $0.44 |
||
|
27
|
27
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
28
|
28
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
29
|
29
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
29
|
29
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
29
|
29
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
