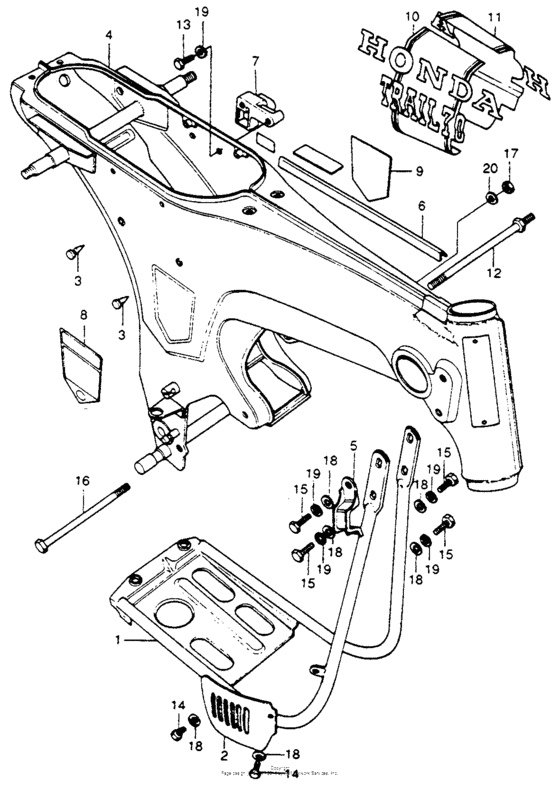

Frame + crankcase protector Diagram Honda CT70
- Model code
- CT70HK1 A
- Sales region
- USA
- Frame
- CT70H2000001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11911-098-671
Protector, crankcase
|
11911-098-671 |
— | ||
|
2
|
2
11912-098-671
Protector, crankcase
|
11912-098-671 |
— | ||
|
3
|
3
50049-046-000 Plug, head pipe |
50049-046-000 |
from US $2.37 |
||
|
4
|
4
50100-098-970CM
Frame *r4c*
|
50100-098-970CM |
— | ||
|
4
|
4
50100-098-970LS
Frame *y1cs*
|
50100-098-970LS |
— | ||
|
4
|
4
50100-098-970-Z
Frame
|
50100-098-970-Z |
— | ||
|
5
|
5
50191-098-670 Grip,wire,harness |
50191-098-670 |
from US $4.59 |
||
|
6
|
6
50305-098-000 Molding,body,frame |
50305-098-000 |
from US $15.64 |
||
|
7
|
7
50710-086-007 Holder assy., helmet |
50710-086-007 |
from US $24.77 |
||
|
8
|
8
87122-098-981
Emblem,frame r
|
87122-098-981 |
— | ||
|
9
|
9
87123-098-980
Emblem,frame l
|
87123-098-980 |
— | ||
|
10
|
10
87124-098-980
Emblem, r. fr.
|
87124-098-980 |
— | ||
|
11
|
11
87125-098-980
Emblem, l. fr.
|
87125-098-980 |
— | ||
|
12
|
12
90112-003-000 Bolt, eng |
90112-003-000 |
from US $10.21 |
||
|
13
|
13
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
14
|
14
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
15
|
15
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
16
|
16
92200-08115-0A
Bolt,hex,8x115
|
92200-08115-0A |
— | ||
| replacement | |||||
|
16
|
16
92201-081-150-A BOLT, HEX (8x115) |
92201-081-150-A |
US $1.33 |
||
|
17
|
17
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
18
|
18
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
19
|
19
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
20
|
20
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
