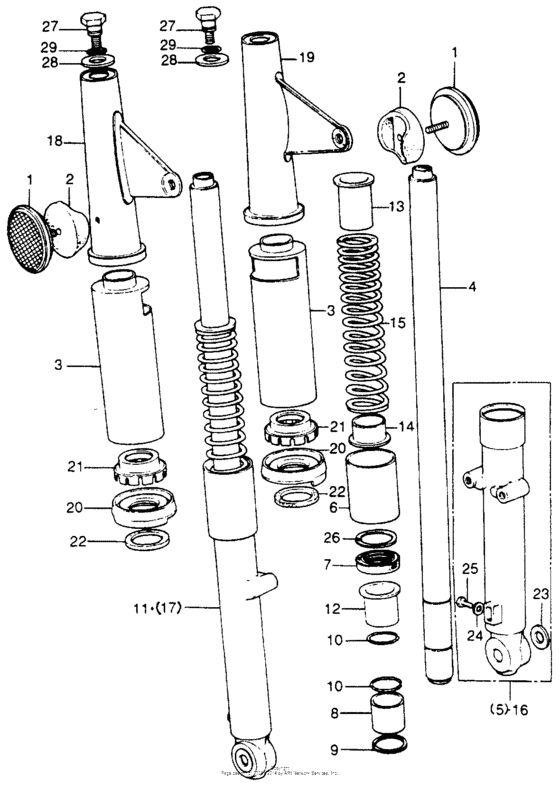

Front fork Diagram Honda CT70
- Model code
- CT70HK1 A
- Sales region
- USA
- Frame
- CT70H2000001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-340-670 Reflector,reflex |
33741-340-670 |
US $34.15 |
||
| replacement | |||||
|
1
|
1
33741-102-870 Reflector, fr. |
33741-102-870 |
from US $28.70 |
||
|
2
|
2
33744-098-970
Base,front reflex
|
33744-098-970 |
— | ||
|
3
|
3
51345-098-970CM
Cover,fr fork un.
|
51345-098-970CM |
— | ||
|
3
|
3
51345-098-970LS
Cvr, fr. fork *y1cs*
|
51345-098-970LS |
— | ||
|
3
|
3
51345-098-970-Z
Cover, fr. fork
|
51345-098-970-Z |
— | ||
|
4
|
4
51410-098-972
Pipe fr fork
|
51410-098-972 |
— | ||
|
5
|
5
51420-098-970
Case, r. fr. fork
|
51420-098-970 |
— | ||
|
6
|
6
51423-098-970
Cover,bottom case
|
51423-098-970 |
— | ||
|
7
|
7
51432-051-000 Oilseal frontfork |
51432-051-000 |
from US $9.03 |
||
|
8
|
8
51442-051-010
Piston,fr.fork
|
51442-051-010 |
— | ||
|
9
|
9
94580-25000
Snapring b,25mm
|
94580-25000 |
— | ||
|
10
|
10
51446-031-000
Ring,piston stop
|
51446-031-000 |
— | ||
|
11
|
11
51400-098-671
Cushion,r,front
|
51400-098-671 |
— | ||
|
12
|
12
94602-25001
Guide,fork 25mm
|
94602-25001 |
— | ||
|
13
|
13
51475-098-970
Guide, fr.
|
51475-098-970 |
— | ||
|
14
|
14
51476-065-000
Guide,cushion
|
51476-065-000 |
— | ||
|
15
|
15
51501-098-970
Spring,fr.cushion
|
51501-098-970 |
— | ||
|
16
|
16
51520-098-950ZA
Case, l. fr. *a26*
|
51520-098-950ZA |
— | ||
|
17
|
17
51500-098-671
Cushion,l,front
|
51500-098-671 |
— | ||
|
18
|
18
51602-098-972CM
Cover,r fork up.
|
51602-098-972CM |
— | ||
|
18
|
18
51602-098-972LS
Cover,r fork up.
|
51602-098-972LS |
— | ||
|
18
|
18
51602-098-972-Z
Cover,r fork up.
|
51602-098-972-Z |
— | ||
|
19
|
19
51606-098-972CM
Cover,l fork up.
|
51606-098-972CM |
— | ||
|
19
|
19
51606-098-972LS
Cover,l fork up
|
51606-098-972LS |
— | ||
|
19
|
19
51606-098-972-Z
Cover,l fork up.
|
51606-098-972-Z |
— | ||
|
20
|
20
51608-031-010
Rib,front fork
|
51608-031-010 |
— | ||
|
21
|
21
51619-031-010
Guide,fork cover
|
51619-031-010 |
— | ||
|
22
|
22
51622-031-000 Packing,forkrib |
51622-031-000 |
US $2.22 |
||
|
23
|
23
90528-229-000 Washer, 12.5mm |
90528-229-000 |
from US $2.87 |
||
|
24
|
24
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
25
|
25
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
26
|
26
94536-35120 Clip,intl.,35mm |
94536-35120 |
from US $0.81 |
||
|
27
|
27
94605-10101 Bolt a,fork |
94605-10101 |
from US $3.33 |
||
|
28
|
28
94606-13001 Washer,fork bolt |
94606-13001 |
from US $0.52 |
||
|
29
|
29
9460810000 O-ring (8.4x2.4) |
9460810000 |
from US $0.74 |
||
