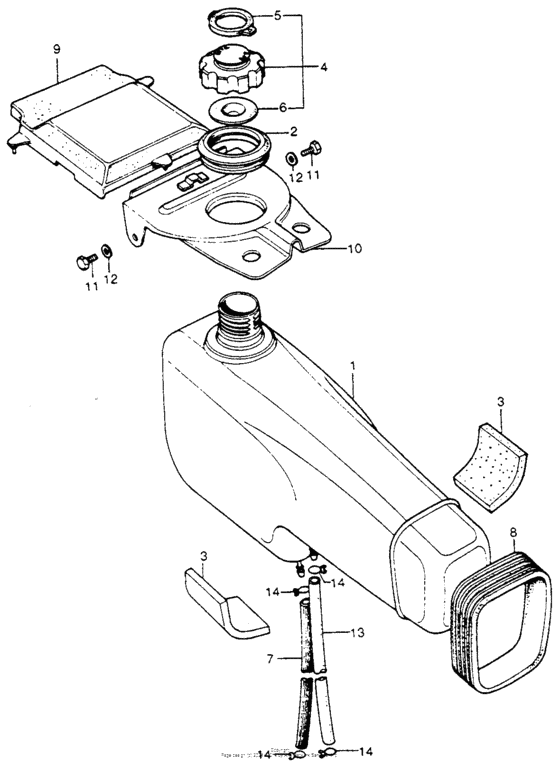

Fuel tank Diagram Honda CT70
- Model code
- CT70HK1 A
- Sales region
- USA
- Frame
- CT70H2000001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17500-098-305
Tank set,fuel
Use up to Frame SN 2017000 |
17500-098-305 |
— | ||
|
1
|
1
17500-098-030
Tank comp.,fuel
Use from Frame SN 2017001 |
17500-098-030 |
— | ||
|
2
|
2
17512-086-010 Packing,fillerUse from Frame SN 2017001 |
17512-086-010 |
from US $5.33 |
||
|
2
|
2
17512-098-000
Packing,fillernec
Use up to Frame SN 2017000 |
17512-098-000 |
— | ||
|
3
|
3
17611-098-300
Long,cushion
Use up to Frame SN 2017000 |
17611-098-300 |
— | ||
|
3
|
3
17611-098-310 Cushion,fuel tankUse from Frame SN 2017001 |
17611-098-310 |
from US $5.48 |
||
|
4
|
4
17620-098-010 Assy,cap fuelUse up to Frame SN 2017000 |
17620-098-010 |
from US $14.36 |
||
|
4
|
4
17620-165-642 Cap, fuel fillerUse from Frame SN 2017001 |
17620-165-642 |
US $51.77 |
||
| replacement | |||||
|
4
|
4
17620-165-643 CAP, FUEL FILLERUse from Frame SN 2017001 |
17620-165-643 |
from US $51.77 |
||
|
5
|
5
17623-098-010
Rubber,breather
Use up to Frame SN 2017000 |
17623-098-010 |
— | ||
|
6
|
6
17624-896-750
Packing, fuel cap
Use up to Frame SN 2017000 |
17624-896-750 |
— | ||
|
6
|
6
17631-096-701
Gasket
Use from Frame SN 2017001 |
17631-096-701 |
— | ||
| replacement | |||||
|
6
|
6
17631-096-702 GasketUse from Frame SN 2017001 |
17631-096-702 |
from US $3.98 |
||
|
7
|
7
17681-098-010
Tube,fuel reserve
|
17681-098-010 |
— | ||
|
8
|
8
17670-098-000
Band tank
|
17670-098-000 |
— | ||
|
9
|
9
50661-098-010ZA Lid,frame b*nh-1* |
50661-098-010ZA |
from US $17.14 |
||
|
10
|
10
50665-098-020-B
Lid,tank
Use up to Frame SN 2017000 |
50665-098-020-B |
— | ||
|
10
|
10
50665-098-030
Lid,fuel tank
Use from Frame SN 2017001 |
50665-098-030 |
— | ||
|
11
|
11
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
12
|
12
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
13
|
13
95001-550-0360M Bulk hose (5.5x3000)Use from Frame SN 2017001 |
95001-550-0360M |
from US $23.04 |
||
|
14
|
14
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
