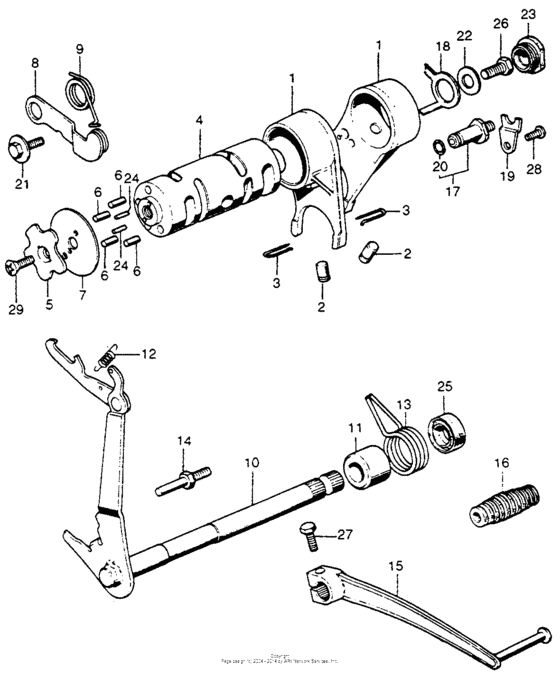

Gearshift Diagram Honda CT70
- Model code
- CT70HK1 A
- Sales region
- USA
- Frame
- CT70H2000001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-065-000 Fork,gear shift |
24211-065-000 |
from US $41.62 |
||
|
2
|
2
24261-028-010 Pin, shift fork |
24261-028-010 |
US $3.37 |
||
| replacement | |||||
|
2
|
2
24261-121-742 Pin |
24261-121-742 |
from US $2.22 |
||
|
2
|
2
24261-121-740 Pin |
24261-121-740 |
from US $2.22 |
||
| replacement | |||||
|
2
|
2
24261-121-742 Pin |
24261-121-742 |
from US $2.22 |
||
|
2
|
2
24261-121-742 Pin |
24261-121-742 |
from US $2.22 |
||
|
3
|
3
24263-028-000 Clip |
24263-028-000 |
from US $2.15 |
||
|
4
|
4
24301-111-010
Drum,gear shift
|
24301-111-010 |
— | ||
|
5
|
5
24411-111-010
Plate,shift drum
|
24411-111-010 |
— | ||
|
6
|
6
24421-230-000 Pin, gearshift drum |
24421-230-000 |
from US $9.18 |
||
|
7
|
7
24425-051-010 Plate,drum side |
24425-051-010 |
US $2.15 |
||
|
8
|
8
24430-041-010 Stpr.,shift drum |
24430-041-010 |
from US $9.62 |
||
|
9
|
9
24435-051-000 Spring, drum stopper |
24435-051-000 |
US $3.18 |
||
|
10
|
10
24610-098-740 Spindle,gearshift |
24610-098-740 |
US $69.67 |
||
|
11
|
11
24639-035-000 Collar,12.2 |
24639-035-000 |
US $3.92 |
||
|
12
|
12
24641-061-000 Spring,shift arm |
24641-061-000 |
US $2.15 |
||
|
13
|
13
24651-035-000 Spring shift rtn |
24651-035-000 |
from US $5.03 |
||
|
14
|
14
24652-035-000 Pin |
24652-035-000 |
from US $4.04 |
||
|
15
|
15
24700-098-970
Pedal,gear change
|
24700-098-970 |
— | ||
|
16
|
16
9501140000 Rubber, shift pedal |
9501140000 |
from US $0.74 |
||
|
17
|
17
35750-001-020 Contact assy. |
35750-001-020 |
from US $6.51 |
||
|
18
|
18
35753-035-662 Rotor neutral sw |
35753-035-662 |
US $2.66 |
||
|
19
|
19
35755-001-020 Plate |
35755-001-020 |
US $2.22 |
||
|
20
|
20
37551-001-000 O-ring (7x1.6) |
37551-001-000 |
US $3.18 |
||
|
21
|
21
90023-041-010 Bolt |
90023-041-010 |
from US $3.23 |
||
|
22
|
22
90417-041-000 Washer, gearshift drum side |
90417-041-000 |
from US $2.59 |
||
|
23
|
23
90801-035-000 Plug, rubber (19mm) |
90801-035-000 |
from US $2.22 |
||
|
24
|
24
91101-111-000 Roller,3x12.8 |
91101-111-000 |
US $2.46 |
||
|
25
|
25
91208-KB4-671 Oil seal |
91208-KB4-671 |
from US $4.29 |
||
|
26
|
26
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
27
|
27
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
28
|
28
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
29
|
29
93700-060-200-A Screw.oval 6x20 |
93700-060-200-A |
from US $0.44 |
||
