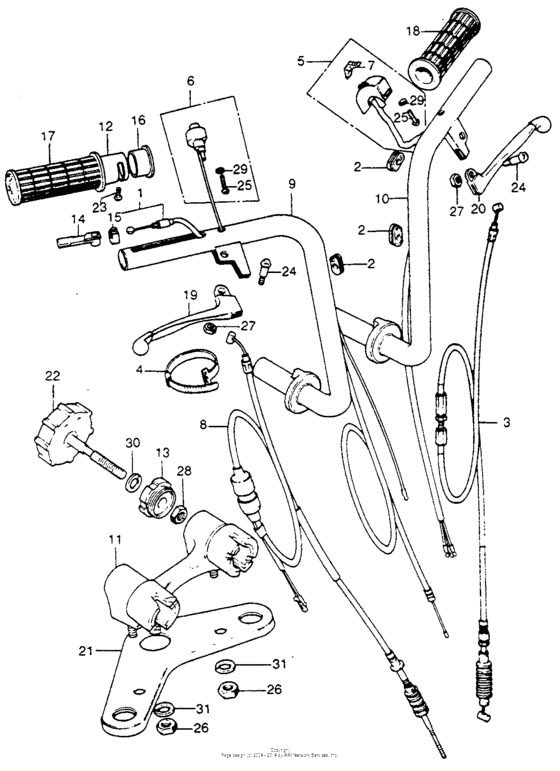

Handlebar Diagram Honda CT70
- Model code
- CT70HK1 A
- Sales region
- USA
- Frame
- CT70H2000001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-098-970
Cable,throttle
|
17910-098-970 |
— | ||
|
2
|
2
17911-023-000 Grommet,throttle |
17911-023-000 |
from US $4.88 |
||
|
3
|
3
22870-098-970
Wire,clutch
|
22870-098-970 |
— | ||
|
4
|
4
9501462100 Band b1, wire |
9501462100 |
from US $1.18 |
||
|
5
|
5
35250-126-701 Switch,dimmer |
35250-126-701 |
from US $28.97 |
||
|
6
|
6
35250-130-620
Sw.assy.,horn
|
35250-130-620 |
— | ||
|
7
|
7
35319-098-671
Knob,dimmer sw.
|
35319-098-671 |
— | ||
|
8
|
8
45450-098-970
Cable,fr.brake
|
45450-098-970 |
— | ||
|
9
|
9
53110-098-971
Pipe,r.strg.handl
|
53110-098-971 |
— | ||
|
10
|
10
53120-098-971
Pipe,l.strg.handl
|
53120-098-971 |
— | ||
|
11
|
11
53131-098-970
Holder, handlebar
|
53131-098-970 |
— | ||
|
12
|
12
53141-098-000 Pipe,grip,throttl |
53141-098-000 |
from US $16.32 |
||
|
13
|
13
53143-045-000 Nut,holder,handle |
53143-045-000 |
US $13.02 |
||
|
14
|
14
53161-044-000 Hinge,throt wire |
53161-044-000 |
from US $9.47 |
||
|
15
|
15
53162-098-010 Holder,throt cabl |
53162-098-010 |
from US $4.47 |
||
|
16
|
16
53163-044-000 Stopper,throtgrip |
53163-044-000 |
US $7.16 |
||
|
17
|
17
95011-12100 Glip b,r handle |
95011-12100 |
from US $3.26 |
||
|
18
|
18
53166-044-010 Rubber,left grip |
53166-044-010 |
US $7.29 |
||
| replacement | |||||
|
18
|
18
95011-12200 Glip b,l handle |
95011-12200 |
from US $3.26 |
||
|
18
|
18
95011-12200 Glip b,l handle |
95011-12200 |
from US $3.26 |
||
|
19
|
19
53175-147-010 Lever,r.steering |
53175-147-010 |
US $14.50 |
||
|
20
|
20
53178-GGL-305 Lever, l. handlebar |
53178-GGL-305 |
US $17.83 |
||
|
21
|
21
53231-098-970XW
Plate,fork bridge
|
53231-098-970XW |
— | ||
|
22
|
22
53740-098-970 Knob,handle hold. |
53740-098-970 |
US $10.66 |
||
|
23
|
23
90101-063-505 Screw |
90101-063-505 |
from US $3.11 |
||
|
24
|
24
90116-GF8-000 Screw, l |
90116-GF8-000 |
from US $4.44 |
||
|
25
|
25
93500-030120A Screw, pan, 3x12 |
93500-030120A |
from US $0.36 |
||
|
26
|
26
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.44 |
||
|
27
|
27
94001-050-000-S NutHEX., 5MM |
94001-050-000-S |
from US $0.37 |
||
|
28
|
28
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
29
|
29
94111-03000 WasherSPRING, 3MM |
94111-03000 |
from US $0.38 |
||
|
30
|
30
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
31
|
31
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
