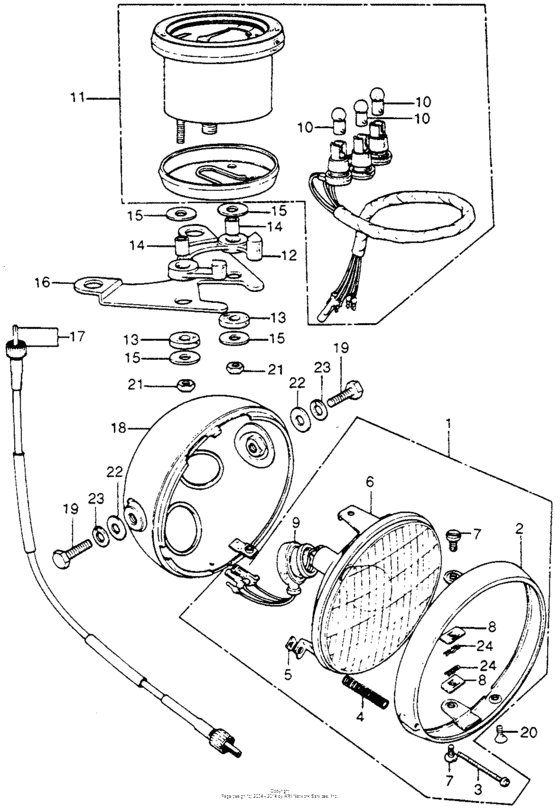

Headlight + speedometer Diagram Honda CT70
- Model code
- CT70HK1 A
- Sales region
- USA
- Frame
- CT70H2000001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-111-671
Light,assy.head
|
33100-111-671 |
— | ||
|
2
|
2
33101-111-671
Rim,head.light
|
33101-111-671 |
— | ||
|
3
|
3
33102-041-003 Screw,head light |
33102-041-003 |
from US $3.23 |
||
|
4
|
4
33107-030-003 Spring |
33107-030-003 |
from US $3.67 |
||
|
5
|
5
33117-041-003 Nut, beam adj. |
33117-041-003 |
from US $2.81 |
||
|
6
|
6
33120-111-671
Unit,head.light
|
33120-111-671 |
— | ||
|
7
|
7
33125-292-670
Screw,unit holder
|
33125-292-670 |
— | ||
|
8
|
8
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $3.51 |
||
|
9
|
9
33130-111-671 Cover, rubber |
33130-111-671 |
US $3.81 |
||
|
10
|
10
34908-230-000 Bulb,speedometer |
34908-230-000 |
from US $2.74 |
||
|
11
|
11
37200-137-671
Speedometer assy
|
37200-137-671 |
— | ||
|
12
|
12
37310-098-970
Rub, meter cushion
|
37310-098-970 |
— | ||
|
13
|
13
37311-061-810
Cussion rubber b
|
37311-061-810 |
— | ||
|
14
|
14
37312-061-810
Cussion collar
|
37312-061-810 |
— | ||
|
15
|
15
37314-061-810
Washer 5.5mm
|
37314-061-810 |
— | ||
|
16
|
16
37315-098-972-B
Stay *nh1*
|
37315-098-972-B |
— | ||
|
17
|
17
44830-126-930 Cable,speedmeter |
44830-126-930 |
US $16.47 |
||
|
18
|
18
61301-111-670CT
Case *nh83l*
|
61301-111-670CT |
— | ||
|
19
|
19
92101-08020-0B Bolt,hex.,8x20 |
92101-08020-0B |
from US $0.70 |
||
|
20
|
20
93700-050120B Screw, oval (5x12) |
93700-050120B |
from US $0.52 |
||
|
21
|
21
94001-050-000-S NutHEX., 5MM |
94001-050-000-S |
from US $0.37 |
||
|
22
|
22
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
23
|
23
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
24
|
24
9425105000 Pin, lock, 5mm |
9425105000 |
from US $0.44 |
