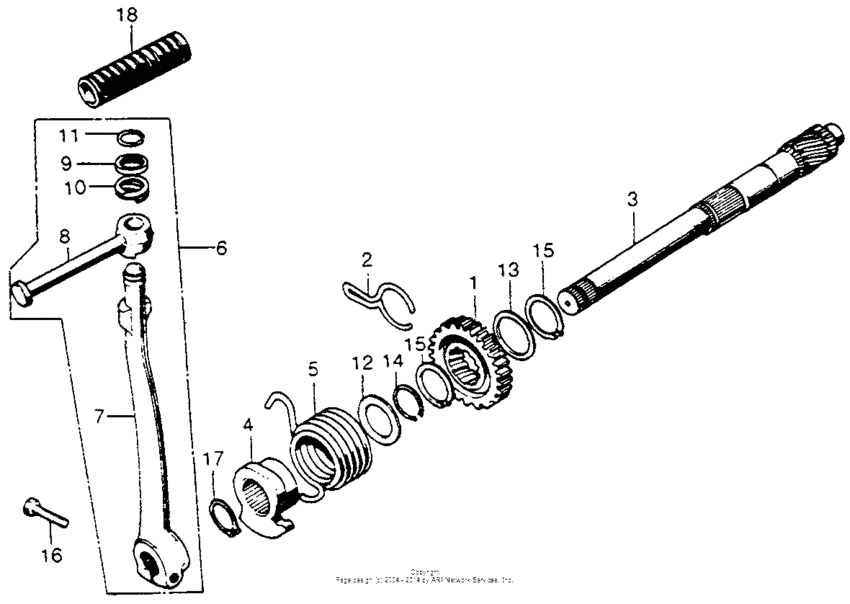

Kick starter Diagram Honda CT70
- Model code
- CT70HK1 A
- Sales region
- USA
- Frame
- CT70H2000001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28211-065-005
Pinion,kick
|
28211-065-005 |
— | ||
|
2
|
2
28223-035-035
Spring
|
28223-035-035 |
— | ||
|
3
|
3
28251-035-065 Spindle |
28251-035-065 |
US $58.48 |
||
| replacement | |||||
|
3
|
3
28251-141-000 Spindle |
28251-141-000 |
US $58.48 |
||
|
3
|
3
28251-141-000 Spindle |
28251-141-000 |
US $58.48 |
||
|
4
|
4
28262-041-731 Retainer |
28262-041-731 |
from US $11.99 |
||
|
5
|
5
28281-035-003 Spring, kick starter |
28281-035-003 |
from US $6.36 |
||
|
6
|
6
28300-126-690
Arm,kick starter
|
28300-126-690 |
— | ||
|
7
|
7
28301-216-000
Arm,kick starter
|
28301-216-000 |
— | ||
|
8
|
8
28302-033-000 Pedal, starter |
28302-033-000 |
US $13.17 |
||
|
9
|
9
28303-001-000 Washer |
28303-001-000 |
from US $2.07 |
||
|
10
|
10
28322-001-000 Spring |
28322-001-000 |
from US $2.15 |
||
|
11
|
11
28324-001-000 Clip |
28324-001-000 |
from US $2.59 |
||
|
12
|
12
90451-040-000
Washer, thrust, 17mm
|
90451-040-000 |
— | ||
|
13
|
13
90482-035-025
Washer (20mm)
|
90482-035-025 |
— | ||
|
14
|
14
90601-001-000 Circlip, external, 17mm |
90601-001-000 |
from US $2.22 |
||
|
15
|
15
90605-200-000 Set-ring (20mm) |
90605-200-000 |
from US $3.11 |
||
|
16
|
16
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
17
|
17
9451016000 Circlip, external, 16mm |
9451016000 |
from US $0.52 |
||
|
18
|
18
9501151000 Rubber, kick starter |
9501151000 |
from US $1.04 |
||
