	Description	OEM Part #	Price
1	1 17211-098-771 Element,cleaner	17211-098-771	from US $5.77
2	2 17212-098-000 Pipe,air cleaner	17212-098-000	from US $4.44
3	3 17221-126-000-B Case,air cleaner	17221-126-000-B	—
4	4 17222-098-771 Plate,element.set	17222-098-771	from US $6.48
5	5 17231-045-030 Cover,case	17231-045-030	from US $11.40
6	6 17252-098-771 Packing,case	17252-098-771	from US $10.51
7	7 16223-GBF-830 Band, insulator	16223-GBF-830	from US $6.66
8	8 77200-098-970-A Seat	77200-098-970-A	—
9	9 77205-286-000 Rubber b, seat setting	77205-286-000	from US $6.66
10	10 77207-098-310 Spring,tool set	77207-098-310	—
11	11 77210-126-000 Bracket a,seat Use up to Frame SN 2017000	77210-126-000	from US $7.10
12	12 77211-098-000 Bracket b,seat	77211-098-000	from US $7.40
13	13 77230-098-000 Comp,catch,seat	77230-098-000	—
14	14 90101-001-010 Pin, seat hinge	90101-001-010	US $4.22
15	15 92101-06010-0A Bolt, hex., 6x10	92101-06010-0A	from US $0.44
16	16 92101-06016-0A Bolt HEX., 6X16	92101-06016-0A	from US $0.44
17	17 92101-08016-0A Bolt, hex., 8x16	92101-08016-0A	from US $0.52
18	18 93500-040-250-A Screw, pan, 4x25	93500-040-250-A	from US $0.37
19	19 93500-061-351-B Screw,pan,6x135	93500-061-351-B	from US $1.63
20	20 94001-062-000-S Nut HEX., 6MM	94001-062-000-S	from US $0.44
21	21 9402106020 Nut, cap (6mm)	9402106020	from US $0.74
22	22 94030-08000 Nut HEX., 8MM	94030-08000	from US $0.44
23	23 94101-06800 Washer PLAIN, 6MM	94101-06800	from US $0.37
24	24 94101-08000 Washer PLAIN, 8MM	94101-08000	from US $0.37
25	25 94111-06000 Washer SPRING, 6MM	94111-06000	from US $0.37
26	26 94111-08000 Washer SPRING, 8MM	94111-08000	from US $0.37

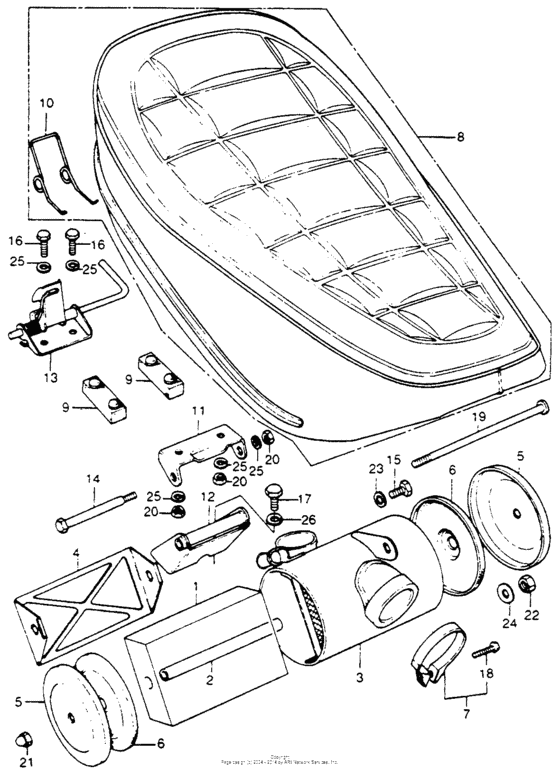

Seat + air cleaner Diagram Honda CT70 USA 13630933-787325

Seat + air cleaner Diagram Honda CT70 USA 13630933-787325
