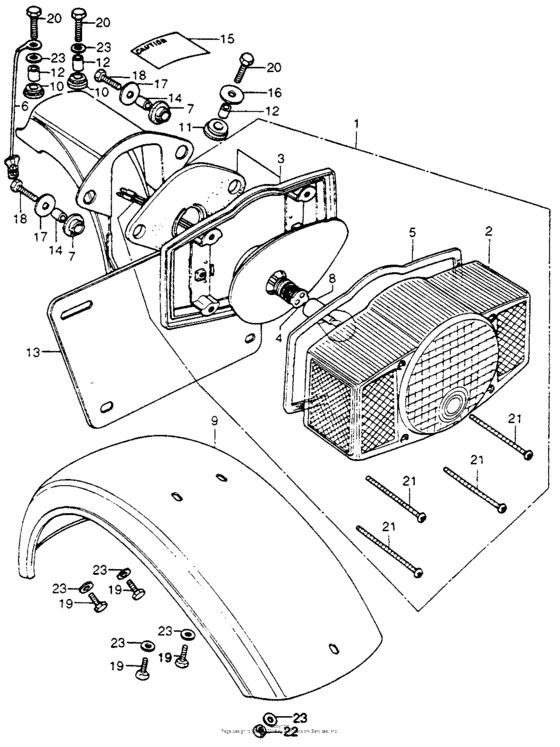

Taillight + rear fender Diagram Honda CT70
- Model code
- CT70HK1 A
- Sales region
- USA
- Frame
- CT70H2000001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33701-098-971
Unit,tail light
|
33701-098-971 |
— | ||
|
2
|
2
33702-341-671 Lens,tail light |
33702-341-671 |
from US $56.29 |
||
|
3
|
3
33703-341-671
Base,tail light
|
33703-341-671 |
— | ||
|
4
|
4
33708-098-000 Wire, taillight |
33708-098-000 |
US $7.84 |
||
|
5
|
5
33709-341-671
Packing,tail lt.
|
33709-341-671 |
— | ||
|
6
|
6
33712-098-970
Cord tail & earth
|
33712-098-970 |
— | ||
|
7
|
7
33719-077-671 Packing,tail,ba,b |
33719-077-671 |
from US $2.14 |
||
|
8
|
8
34906-202-670 Bulb, tail light |
34906-202-670 |
from US $4.07 |
||
|
9
|
9
80100-098-970XW
Fender,rear
|
80100-098-970XW |
— | ||
|
10
|
10
80105-053-650
Cushion,winker
|
80105-053-650 |
— | ||
|
11
|
11
80105-098-970
Cushion,no.plate
|
80105-098-970 |
— | ||
|
12
|
12
80108-098-970
Collar,no.plate
|
80108-098-970 |
— | ||
|
13
|
13
84701-098-970
Brkt, number plate
|
84701-098-970 |
— | ||
|
14
|
14
84706-286-000 Collar no bracket |
84706-286-000 |
from US $2.74 |
||
|
15
|
15
87508-098-680
Mark,bat caution
|
87508-098-680 |
— | ||
|
16
|
16
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
17
|
17
90581-310-000 Washer,18m/m |
90581-310-000 |
from US $2.74 |
||
|
18
|
18
92101-05020-0B Bolt, hex. (5x20) |
92101-05020-0B |
US $0.52 |
||
|
19
|
19
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
20
|
20
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
21
|
21
93500-040-550-B Screw,pan,4x55 |
93500-040-550-B |
from US $0.59 |
||
|
22
|
22
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
23
|
23
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
