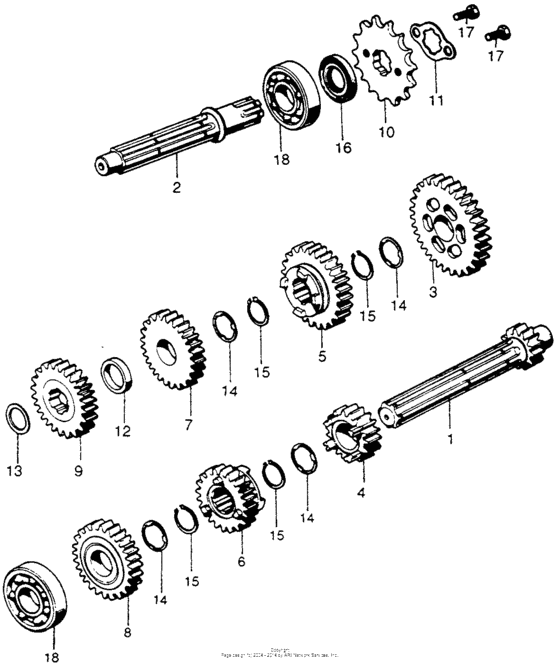

Transmission Diagram Honda CT70
- Model code
- CT70HK1 A
- Sales region
- USA
- Frame
- CT70H2000001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-065-010 Shaft,main |
23211-065-010 |
US $126.26 |
||
|
2
|
2
23221-065-010 Shaft,counter |
23221-065-010 |
US $84.12 |
||
| replacement | |||||
|
2
|
2
23221-065-020 Ct/shaft,trans. |
23221-065-020 |
from US $47.74 |
||
|
2
|
2
23221-065-020 Ct/shaft,trans. |
23221-065-020 |
from US $47.74 |
||
|
3
|
3
23421-065-010
Gear,low
|
23421-065-010 |
— | ||
|
4
|
4
23431-041-040
Gear,m 2nd
|
23431-041-040 |
— | ||
|
5
|
5
23441-065-020
Gear,ct/shaft 2nd
|
23441-065-020 |
— | ||
|
6
|
6
23451-065-000
Gear,m third
|
23451-065-000 |
— | ||
|
7
|
7
23461-065-000
Gear,c third
|
23461-065-000 |
— | ||
|
8
|
8
23471-065-010 Gear,m top |
23471-065-010 |
US $50.29 |
||
|
9
|
9
23481-065-010
Gear,c top
|
23481-065-010 |
— | ||
|
10
|
10
23800-040-010 Sprocket (14t) |
23800-040-010 |
from US $16.73 |
||
|
11
|
11
23802-040-000 Plate |
23802-040-000 |
from US $2.15 |
||
|
12
|
12
23911-065-000
Collar, gear
|
23911-065-000 |
— | ||
|
13
|
13
90451-035-000
Washer, thrust
|
90451-035-000 |
— | ||
|
14
|
14
90461-035-000 Washer (17mm) |
90461-035-000 |
from US $3.03 |
||
|
15
|
15
90601-001-000 Circlip, external, 17mm |
90601-001-000 |
from US $2.22 |
||
|
16
|
16
91203-035-005 Oil seal (17x29x5) |
91203-035-005 |
from US $5.77 |
||
|
17
|
17
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
18
|
18
96100-6203000 Bearing, radial ball, 6203 |
96100-6203000 |
from US $6.07 |
||
