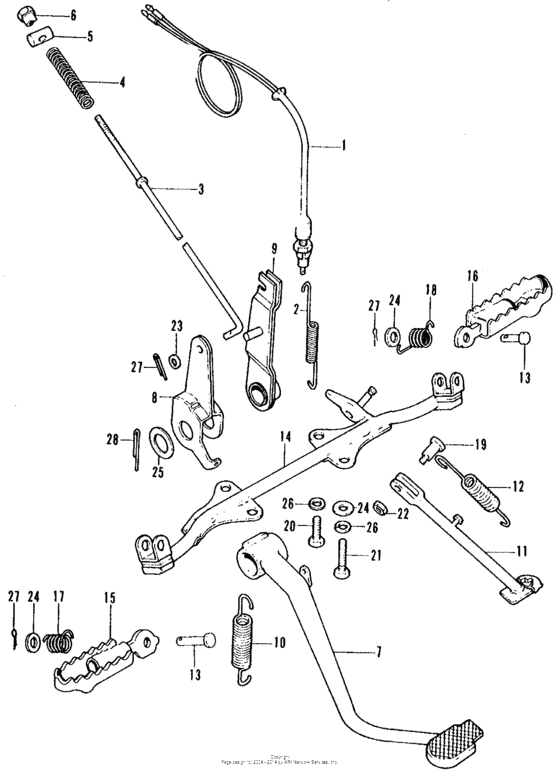

Brake pedal + side stand + step Diagram Honda CT70
- Model code
- CT70K2 A
- Sales region
- USA
- Frame
- CT702100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35350-098-005 Switch assy,,stop |
35350-098-005 |
US $13.32 |
||
|
2
|
2
35357-046-000 Spring, switch |
35357-046-000 |
from US $1.77 |
||
|
3
|
3
43451-098-770
Rod,rr.brake
|
43451-098-770 |
— | ||
|
4
|
4
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
5
|
5
95015-31001 Joint aBRAKE ARM |
95015-31001 |
from US $0.74 |
||
|
6
|
6
9501541000 Nut a, brake rod adjusting |
9501541000 |
from US $0.81 |
||
|
7
|
7
46500-098-970
Pedal,brake
|
46500-098-970 |
— | ||
|
8
|
8
46510-098-970
Arm brake pedal
|
46510-098-970 |
— | ||
|
9
|
9
46511-098-670
Arm,wire
|
46511-098-670 |
— | ||
|
10
|
10
46514-086-720 Spring,brk.pedal |
46514-086-720 |
from US $2.66 |
||
|
11
|
11
50530-098-970
Bar,side stand
|
50530-098-970 |
— | ||
|
12
|
12
9501472402 Spring d, side stand |
9501472402 |
from US $1.63 |
||
|
13
|
13
50603-033-010 Pin, step bar joint |
50603-033-010 |
from US $3.18 |
||
|
14
|
14
50611-098-950-B
Bar, step *nh1*
|
50611-098-950-B |
— | ||
|
15
|
15
50616-110-790
Arm,right step
|
50616-110-790 |
— | ||
|
16
|
16
50617-283-000
Spring, return
|
50617-283-000 |
— | ||
|
17
|
17
50642-110-790
Arm,left step
|
50642-110-790 |
— | ||
|
18
|
18
50644-283-000 Spring, return |
50644-283-000 |
US $4.68 |
||
|
19
|
19
90108-223-000 Bolt |
90108-223-000 |
from US $4.88 |
||
|
20
|
20
92101-08020-0A BoltHEX., 8X20 |
92101-08020-0A |
from US $0.52 |
||
|
21
|
21
92101-08025-0A Bolt, hex., 8x25 |
92101-08025-0A |
from US $0.59 |
||
|
22
|
22
94002-100-000-S NutHEX., 10MM |
94002-100-000-S |
from US $0.55 |
||
|
23
|
23
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.36 |
||
|
24
|
24
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.27 |
||
|
25
|
25
94101-14000 Washer, plain, 14mm |
94101-14000 |
from US $0.44 |
||
|
26
|
26
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
27
|
27
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
28
|
28
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
28
|
28
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.49 |
||
|
28
|
28
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.49 |
||
