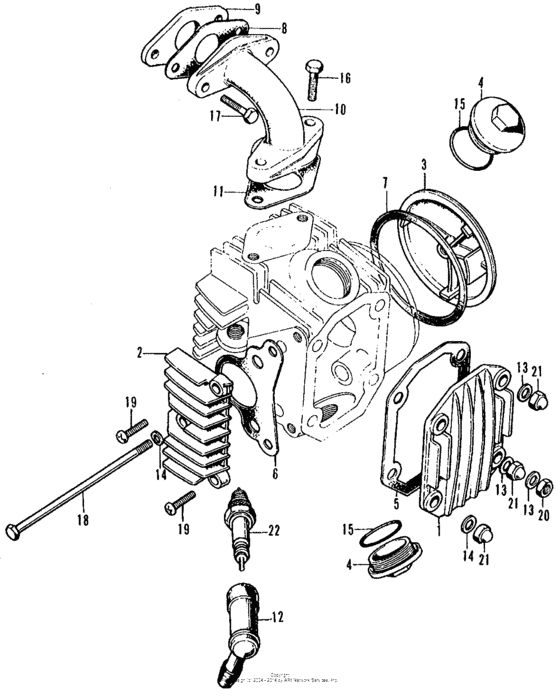

Cylinder head cover + inletpipe + spark plug Diagram Honda CT70
- Model code
- CT70K2 A
- Sales region
- USA
- Frame
- CT702100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12301-035-000 Cover, cylinder head |
12301-035-000 |
US $15.37 |
||
|
2
|
2
12331-035-000 Cvr, r. cyl hd side |
12331-035-000 |
US $19.91 |
||
|
3
|
3
12341-035-000 Cvr, l. cyl hd side |
12341-035-000 |
from US $15.37 |
||
|
4
|
4
12361-300-000 Cap, valve adj. |
12361-300-000 |
from US $11.03 |
||
|
5
|
5
12391-GW8-680 Gasket, cyl hd cvr |
12391-GW8-680 |
US $5.71 |
||
| replacements | |||||
|
5
|
5
12391-GW8-681 Gasket, cyl hd cvr |
12391-GW8-681 |
US $5.42 |
||
|
5
|
5
12391-KVM-C20 GASKET, CYLINDER HEAD |
12391-KVM-C20 |
from US $3.63 |
||
|
6
|
6
12394-035-010 Gasket, r. cylinder |
12394-035-010 |
from US $2.99 |
||
|
7
|
7
12395-GW8-681 Gasket, l |
12395-GW8-681 |
US $6.83 |
||
| replacement | |||||
|
7
|
7
12395-GW8-682 Gasket, l |
12395-GW8-682 |
from US $4.29 |
||
|
8
|
8
16201-098-010 Gasket, insulator |
16201-098-010 |
from US $3.40 |
||
|
9
|
9
16211-098-306 Insulator, carb |
16211-098-306 |
from US $6.12 |
||
|
10
|
10
17111-098-000
Pipe,inlet
|
17111-098-000 |
— | ||
|
11
|
11
17119-088-831 Gasket, in. pipe |
17119-088-831 |
from US $2.96 |
||
| replacement | |||||
|
11
|
11
17119-088-832 Gasket, in. pipe |
17119-088-832 |
US $4.91 |
||
|
12
|
12
30700-KE2-942 Cap, spark plug |
30700-KE2-942 |
from US $18.41 |
||
|
13
|
13
90442-035-000 Washer (6mm) |
90442-035-000 |
from US $1.96 |
||
|
14
|
14
90443-035-000 Washer a (6mm) |
90443-035-000 |
from US $2 |
||
|
15
|
15
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $1.58 |
||
|
16
|
16
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.19 |
||
|
17
|
17
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.58 |
||
|
18
|
18
92101-06110-0A Bolt, hex. (6x112) |
92101-06110-0A |
from US $1.04 |
||
|
19
|
19
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
20
|
20
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
21
|
21
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
22
|
22
98056-57713 Plug,spark |
98056-57713 |
from US $3.20 |
||
| replacement | |||||
|
22
|
22
9805657718 Spark plug (cr7hsa) |
9805657718 |
from US $2.91 |
||
