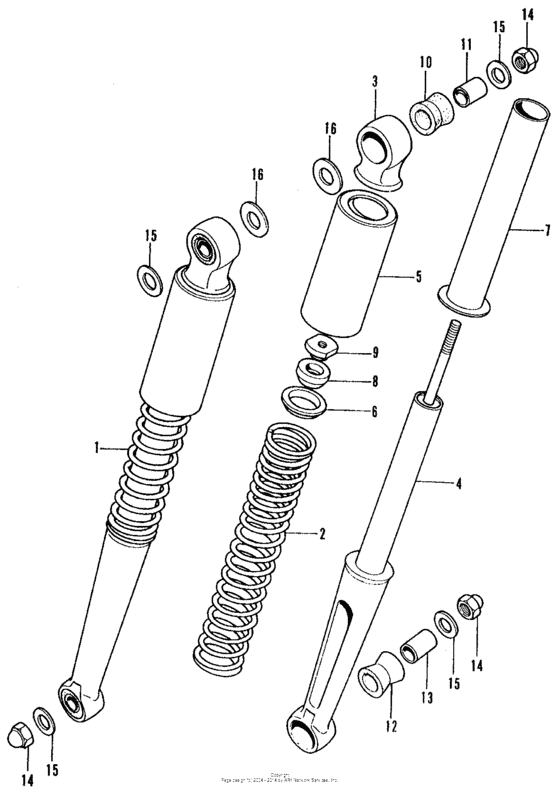

Rear shock absorber Diagram Honda CT70
- Model code
- CT70K2 A
- Sales region
- USA
- Frame
- CT702100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-098-971XW
S/abs assy. *mrcr2*
|
52400-098-971XW |
— | ||
|
2
|
2
52401-098-670
Spring,cushion
|
52401-098-670 |
— | ||
|
3
|
3
52410-033-000
Metal, cushion
|
52410-033-000 |
— | ||
|
4
|
4
52410-098-952
Damper comp.,rr.
|
52410-098-952 |
— | ||
|
5
|
5
52460-098-670XW
Case,rr.cush.up.
|
52460-098-670XW |
— | ||
|
6
|
6
52461-089-670
Upper guide
|
52461-089-670 |
— | ||
|
7
|
7
52462-111-000
Guide,spring und.
|
52462-111-000 |
— | ||
|
8
|
8
52475-051-000 Rubber, rr |
52475-051-000 |
US $3.55 |
||
|
9
|
9
52481-051-000 Nut, rr. (upper) |
52481-051-000 |
from US $2.30 |
||
|
10
|
10
52495-098-000 Bush,rubber |
52495-098-000 |
US $3.63 |
||
|
11
|
11
52496-040-000 Rubber, cushion |
52496-040-000 |
from US $3.54 |
||
|
12
|
12
52489-028-000 Bush, rr. |
52489-028-000 |
from US $2.66 |
||
|
13
|
13
52496-035-000
Collar, cushion
|
52496-035-000 |
— | ||
|
14
|
14
94021-100200S Nut, cap (10mm) |
94021-100200S |
from US $0.93 |
||
|
15
|
15
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
16
|
16
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
