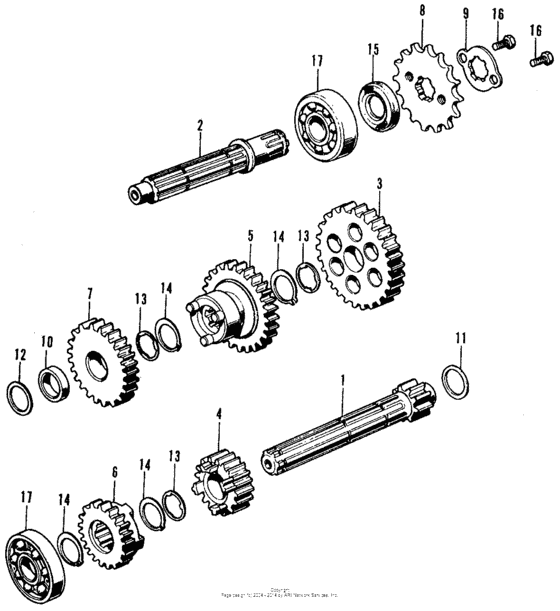

Transmission Diagram Honda CT70
- Model code
- CT70K2 A
- Sales region
- USA
- Frame
- CT702100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-041-020
Mainshaft (11t)
|
23211-041-020 |
— | ||
|
2
|
2
23221-041-050 Countershaft, trans |
23221-041-050 |
from US $55.05 |
||
|
3
|
3
23421-086-010
Gear,c.low
|
23421-086-010 |
— | ||
|
4
|
4
23431-040-060
Gear,m.2nd
|
23431-040-060 |
— | ||
|
5
|
5
23441-086-010 Gear (31t) |
23441-086-010 |
US $48.55 |
||
|
6
|
6
23471-041-040
Gear,m top
|
23471-041-040 |
— | ||
|
7
|
7
23481-086-010 Gear (25t) |
23481-086-010 |
US $30.74 |
||
|
8
|
8
23800-098-000 Sprocket (15t) |
23800-098-000 |
from US $16.47 |
||
|
9
|
9
23802-040-000 Plate |
23802-040-000 |
from US $2.15 |
||
|
10
|
10
23911-041-020 Collar, gear |
23911-041-020 |
US $4.07 |
||
|
11
|
11
90451-001-000 Washer (14mm) |
90451-001-000 |
from US $2.15 |
||
|
12
|
12
90451-035-000
Washer, thrust
|
90451-035-000 |
— | ||
|
13
|
13
90461-035-000 Washer (17mm) |
90461-035-000 |
from US $2.28 |
||
|
14
|
14
90601-001-000 Circlip, external, 17mm |
90601-001-000 |
from US $1.90 |
||
|
15
|
15
91203-035-005 Oil seal (17x29x5) |
91203-035-005 |
from US $5.18 |
||
|
16
|
16
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
17
|
17
96100-6203000 Bearing, radial ball, 6203 |
96100-6203000 |
from US $6.07 |
