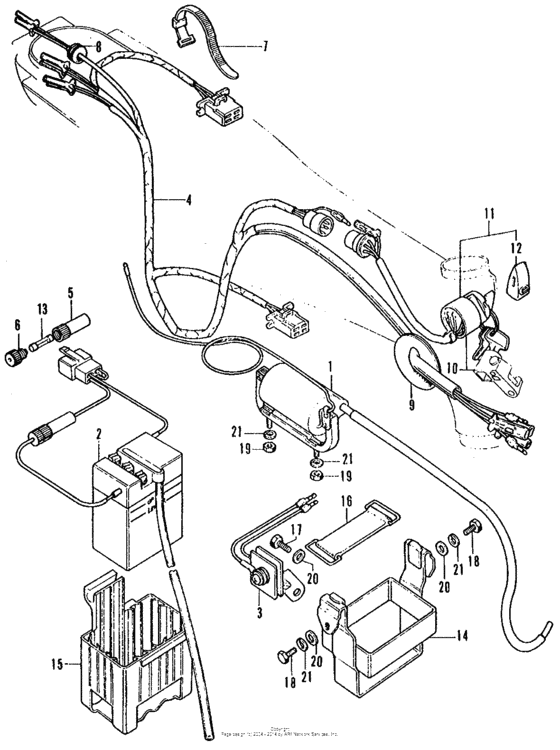

Wire harness + battery Diagram Honda CT70
- Model code
- CT70K2 A
- Sales region
- USA
- Frame
- CT702100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30530-126-921
A,c,coil,ignition
|
30530-126-921 |
— | ||
|
2
|
2
31500-147-505AH Battery (6n2) |
31500-147-505AH |
US $29.33 |
||
|
3
|
3
31700-098-305
Rectifier,silicon
|
31700-098-305 |
— | ||
|
3
|
3
31700-098-921
Rectifier assy.
|
31700-098-921 |
— | ||
| replacement | |||||
|
3
|
3
31700-098-305
Rectifier,silicon
|
31700-098-305 |
— | ||
|
4
|
4
32100-098-950
Wire harness
|
32100-098-950 |
— | ||
|
5
|
5
32106-437-300
Connector a,fuse
|
32106-437-300 |
— | ||
|
6
|
6
32112-041-008 Connector b,fuse |
32112-041-008 |
US $4.93 |
||
|
7
|
7
9501462200 Band b2, wire |
9501462200 |
from US $1.18 |
||
|
8
|
8
32983-011-000 Grommet, harn |
32983-011-000 |
from US $2.81 |
||
|
9
|
9
32984-098-000 Grommet,harness |
32984-098-000 |
from US $4.74 |
||
|
10
|
10
35010-098-950
Lock set
|
35010-098-950 |
— | ||
|
11
|
11
35100-098-951 Switch assy,comb. |
35100-098-951 |
US $101.95 |
||
|
12
|
12
35112-098-670 Cap,key |
35112-098-670 |
US $6.66 |
||
|
13
|
13
9820010700 Fuse a (7a) |
9820010700 |
from US $0.59 |
||
|
14
|
14
50325-098-010
Box,battery
|
50325-098-010 |
— | ||
|
15
|
15
50326-098-000 Cushion,battery |
50326-098-000 |
US $14.14 |
||
|
16
|
16
50382-098-000 Band,battery |
50382-098-000 |
from US $6.94 |
||
|
17
|
17
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
18
|
18
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
19
|
19
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
20
|
20
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
21
|
21
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
