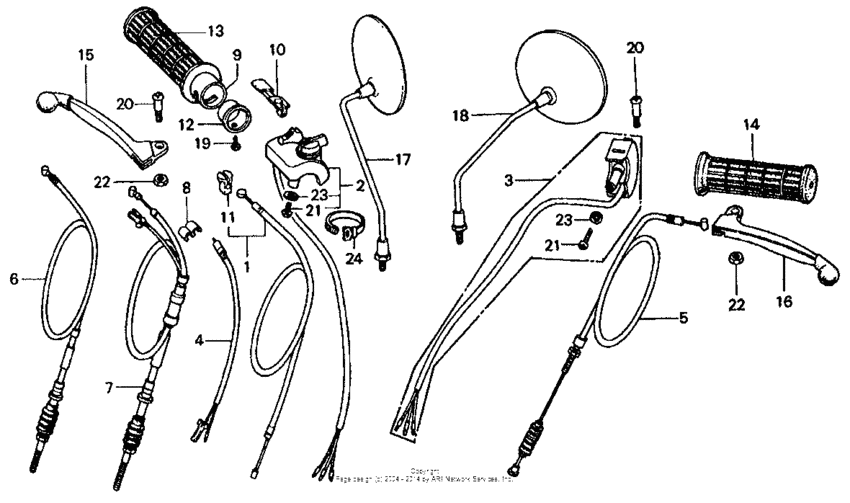

Handle lever + switch + cable k3 Diagram Honda CT70
- Model code
- CT70K3 A
- Sales region
- USA
- Frame
- CT702300001 - CT702332907
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-098-970
Cable,throttle
|
17910-098-970 |
— | ||
|
2
|
2
35250-098-951
Switch,dimmer
|
35250-098-951 |
— | ||
|
3
|
3
35300-098-951
Switch,winker
|
35300-098-951 |
— | ||
|
4
|
4
35340-098-952
Switch, fr. stop
Use from Frame SN 2320002 |
35340-098-952 |
— | ||
|
5
|
5
43460-098-970 Wirer,rr brakeUse up to Frame SN 2320001 |
43460-098-970 |
US $36.40 |
||
|
6
|
6
45450-098-950
Cable,front brake
Use from Frame SN 2320002 |
45450-098-950 |
— | ||
|
7
|
7
45450-098-970
Cable,fr.brake
Use up to Frame SN 2320001 |
45450-098-970 |
— | ||
|
8
|
8
45465-270-000 Clip, brake wire |
45465-270-000 |
from US $6.53 |
||
|
9
|
9
53141-098-000 Pipe,grip,throttl |
53141-098-000 |
from US $16.32 |
||
|
10
|
10
53161-098-000
Hinge,throt.wire
|
53161-098-000 |
— | ||
|
11
|
11
53162-098-010 Holder,throt cabl |
53162-098-010 |
from US $4.47 |
||
|
12
|
12
53163-098-000
Stopper,throttle
|
53163-098-000 |
— | ||
|
13
|
13
53165-120-000 Grip a,r handle |
53165-120-000 |
from US $14 |
||
|
14
|
14
53166-120-000 Grip a,l handle |
53166-120-000 |
from US $20.55 |
||
|
15
|
15
53175-147-010 Lever,r.steering |
53175-147-010 |
US $14.50 |
||
|
16
|
16
53178-GGL-305 Lever, l. handlebarUse up to Frame SN 2320001 |
53178-GGL-305 |
US $17.83 |
||
|
17
|
17
88110-088-950
Mirror, r. back
|
88110-088-950 |
— | ||
|
18
|
18
88120-088-950
Mirror, l. back
|
88120-088-950 |
— | ||
|
19
|
19
90101-063-505 Screw |
90101-063-505 |
from US $3.11 |
||
|
20
|
20
90116-GF8-000 Screw, lUse up to Frame SN 2320001 |
90116-GF8-000 |
from US $4.44 |
||
|
21
|
21
93500-030120A Screw, pan, 3x12 |
93500-030120A |
from US $0.36 |
||
|
22
|
22
94001-050-000-S NutHEX., 5MM Use up to Frame SN 2320001 |
94001-050-000-S |
from US $0.37 |
||
|
23
|
23
94111-03000 WasherSPRING, 3MM |
94111-03000 |
from US $0.38 |
||
|
24
|
24
9501462100 Band b1, wire |
9501462100 |
from US $1.18 |
