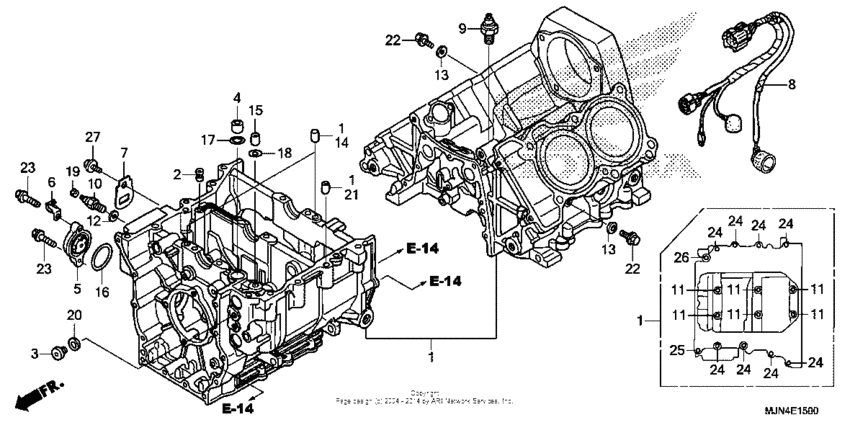

Crankcase Diagram Honda CTX1300
- Year
- 2014
- Model code
- CTX1300A AC
- Sales region
- USA
- Frame
- JH2SC745*EK000001 -
- Engine Capacity
- 1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-MJN-A00 Crankcase set |
11000-MJN-A00 |
from US $2,846.48 |
||
|
2
|
2
11205-MCS-000 Orifice a (1.6mm) |
11205-MCS-000 |
from US $3.85 |
||
|
3
|
3
12206-MBW-000 Bolt, sealing (14mm) |
12206-MBW-000 |
from US $7.10 |
||
|
4
|
4
15326-KBV-000 Collar (16x18x10) |
15326-KBV-000 |
from US $2.74 |
||
|
5
|
5
15660-MJN-A00 Finder, oil level |
15660-MJN-A00 |
from US $25.98 |
||
|
6
|
6
16106-KW7-900 Clip b, tube |
16106-KW7-900 |
from US $2.22 |
||
|
7
|
7
30535-MJN-A00 Stay, harness clip |
30535-MJN-A00 |
from US $2.22 |
||
|
8
|
8
32109-MJN-A00 Sub-harness, engine |
32109-MJN-A00 |
from US $70.04 |
||
|
9
|
9
35500-MJ4-024 Switch, oil pressure |
35500-MJ4-024 |
from US $35.50 |
||
|
10
|
10
35600-MK4-860 Switch, neutral |
35600-MK4-860 |
from US $16.05 |
||
|
11
|
11
90001-MCS-000 Bolt, flange (10x87) |
90001-MCS-000 |
from US $6.02 |
||
|
12
|
12
90443-MJ6-000 Washer, neutral |
90443-MJ6-000 |
from US $1.63 |
||
|
13
|
13
90463-ML7-000 Washer (6.5mm) |
90463-ML7-000 |
from US $2.22 |
||
|
14
|
14
90701-MV9-670 Pin, dowel (10x16) |
90701-MV9-670 |
from US $2.59 |
||
|
15
|
15
90702-MJ4-000 Pin, dowel (10x10) |
90702-MJ4-000 |
from US $2.44 |
||
|
16
|
16
91301-679-003 O-ring45X2.5 (ARAI) |
91301-679-003 |
from US $2.66 |
||
|
17
|
17
91302-KE8-003 O-ring (18x3) |
91302-KE8-003 |
from US $1.57 |
||
|
18
|
18
91305-422-000 O-ring (9.8x2.4) |
91305-422-000 |
from US $3.70 |
||
|
19
|
19
9405004000 Nut, flange, 4mm |
9405004000 |
from US $0.44 |
||
|
20
|
20
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
21
|
21
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
22
|
22
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
23
|
23
95701-0602502 Bolt, flange, 6x25 |
95701-0602502 |
from US $0.74 |
||
|
24
|
24
95701-0806000 Bolt, flange, 8x60 |
95701-0806000 |
from US $0.81 |
||
|
25
|
25
95701-0808000 Bolt, flange, 8x80 |
95701-0808000 |
from US $0.89 |
||
|
26
|
26
95701-0812000 Bolt, flange (8x120) |
95701-0812000 |
from US $1.48 |
||
|
27
|
27
90006-GHB-610 Bolt (6x12) |
90006-GHB-610 |
from US $1.92 |
||
|
27
|
27
95701-060-120-2 BoltFLANGE, 6X12 |
95701-060-120-2 |
from US $0.67 |
