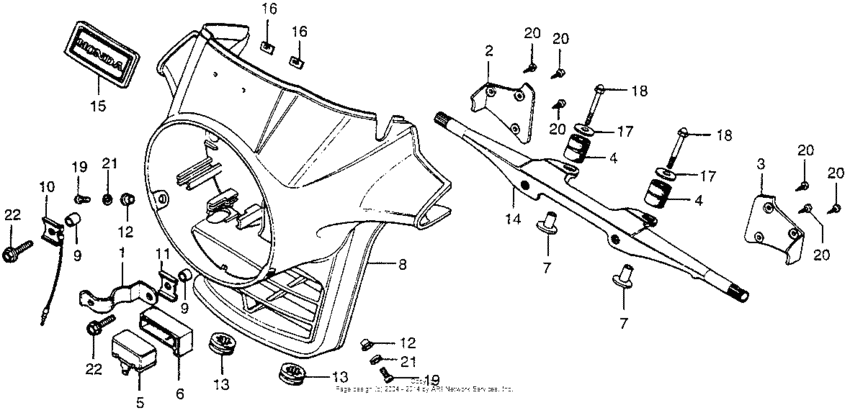

Headlight case Diagram Honda CX500
- Year
- 1979
- Model code
- CX500 A
- Sales region
- USA
- Frame
- CX5002100006 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32166-415-000
Clamper b,cord
|
32166-415-000 |
— | ||
|
2
|
2
33470-415-000
Cover,r.winker
|
33470-415-000 |
— | ||
|
3
|
3
33475-415-000
Cover,l.winker
|
33475-415-000 |
— | ||
|
4
|
4
33731-415-000
Rubber,taillmount
|
33731-415-000 |
— | ||
|
5
|
5
38301-KJ6-743 Relay, turn signalUse up to Frame SN 2103355 |
38301-KJ6-743 |
US $73.93 |
||
| replacement | |||||
|
5
|
5
38301-KG0-024 Relay, turn signalUse up to Frame SN 2103355 |
38301-KG0-024 |
from US $49.10 |
||
|
5
|
5
38300-MG2-008 Relay,assy winkerUse from Frame SN 2103356 |
38300-MG2-008 |
US $53.72 |
||
|
6
|
6
38306-092-670
Suspension,winker
Use up to Frame SN 2103355 |
38306-092-670 |
— | ||
|
6
|
6
38306-292-000 SuspensionUse from Frame SN 2103356 |
38306-292-000 |
from US $4.07 |
||
|
7
|
7
61104-415-000
Collar,light stay
|
61104-415-000 |
— | ||
|
8
|
8
61301-415-000ZD
Case,hd/lt*nh-1*
|
61301-415-000ZD |
— | ||
|
8
|
8
61301-415-000ZE
Case,hd/lt*r-8c-s
|
61301-415-000ZE |
— | ||
|
9
|
9
61302-128-000
Collar,light case
|
61302-128-000 |
— | ||
|
10
|
10
61303-074-000
Washer
|
61303-074-000 |
— | ||
|
11
|
11
61303-229-000 Washer,light case |
61303-229-000 |
from US $2.66 |
||
|
12
|
12
61304-292-000 Collar |
61304-292-000 |
from US $3.40 |
||
|
13
|
13
61304-415-000 Rubber |
61304-415-000 |
from US $2.96 |
||
|
14
|
14
61305-415-770
Stay,case upper
|
61305-415-770 |
— | ||
|
15
|
15
87106-415-000
Emb,headlightcase
|
87106-415-000 |
— | ||
|
16
|
16
90315-504-000 NutSPIRE, 3MM |
90315-504-000 |
from US $1.48 |
||
|
17
|
17
90545-292-000 Washer, 6.5x20 |
90545-292-000 |
from US $2.59 |
||
|
18
|
18
92500-06040-0A
Bolt, cap, 6x40
|
92500-06040-0A |
— | ||
|
19
|
19
93500-050-160-B ScrewPAN, 5X16 |
93500-050-160-B |
from US $0.52 |
||
|
20
|
20
93901-12380 ScrewTAPPING, 3X12 |
93901-12380 |
US $0.37 |
||
|
21
|
21
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
22
|
22
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
