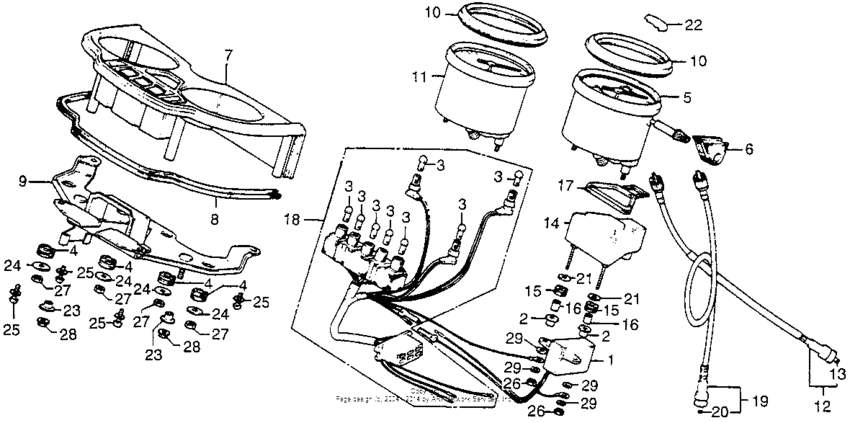

Speedometer + tachometer i Diagram Honda CX500
- Year
- 1979
- Model code
- CX500 A
- Sales region
- USA
- Frame
- CX5002100006 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31410-415-018
Regulator assy
|
31410-415-018 |
— | ||
|
2
|
2
31411-415-000
Collar,regu 7v
|
31411-415-000 |
— | ||
|
3
|
3
34902-259-000 BulbDASH (12V 3.4W) (STANLEY) |
34902-259-000 |
from US $2.29 |
||
| replacement | |||||
|
3
|
3
34902-259-003 Bulb (12v 3.4w) |
34902-259-003 |
from US $2.11 |
||
|
4
|
4
37113-415-008
Rubber,meter cush
|
37113-415-008 |
— | ||
|
5
|
5
37200-415-771
Speedometer assy
|
37200-415-771 |
— | ||
|
6
|
6
37203-415-000
Grommet,trip knob
|
37203-415-000 |
— | ||
|
7
|
7
37212-415-673
Pl.,meter setting
|
37212-415-673 |
— | ||
|
8
|
8
37213-415-000
Pa.meter panel
|
37213-415-000 |
— | ||
|
9
|
9
37219-415-018
Bracket,meter
|
37219-415-018 |
— | ||
|
10
|
10
37233-415-000
Ring,metercushion
|
37233-415-000 |
— | ||
|
11
|
11
37250-415-771
Tachometer assy.
|
37250-415-771 |
— | ||
|
12
|
12
37260-300-000 Cable tachometer |
37260-300-000 |
US $30.46 |
||
|
12
|
12
37260-449-840 Cable,tachometer |
37260-449-840 |
US $28.86 |
||
|
13
|
13
37260-300-000 Cable tachometer |
37260-300-000 |
US $30.46 |
||
|
13
|
13
37260-449-840 Cable,tachometer |
37260-449-840 |
US $28.86 |
||
|
14
|
14
37450-415-771
Meter assy.,temp
|
37450-415-771 |
— | ||
|
15
|
15
37451-415-008
Rubber b,mount
|
37451-415-008 |
— | ||
|
16
|
16
37452-415-000
Collar,temp meter
|
37452-415-000 |
— | ||
|
17
|
17
37455-415-000
Rubber,temp meter
|
37455-415-000 |
— | ||
|
18
|
18
37619-415-018
Socket,rubber
Use up to Frame SN 2103265 |
37619-415-018 |
— | ||
|
19
|
19
44830-425-870 Cable,speedometer |
44830-425-870 |
from US $34.14 |
||
|
20
|
20
44830-425-870 Cable,speedometer |
44830-425-870 |
from US $34.14 |
||
|
21
|
21
47134-567-000 Washer c |
47134-567-000 |
US $3.62 |
||
|
22
|
22
87523-413-710
Label
|
87523-413-710 |
— | ||
|
23
|
23
61107-KB5-000 Collar, fr |
61107-KB5-000 |
from US $2.55 |
||
|
24
|
24
90581-831-650 Washer (18mm) |
90581-831-650 |
from US $1.55 |
||
|
25
|
25
93892-040-120-0 Screw-washer4X12 |
93892-040-120-0 |
from US $0.44 |
||
|
26
|
26
94001-040-000-S NutHEX., 4MM |
94001-040-000-S |
from US $0.37 |
||
|
27
|
27
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
28
|
28
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
29
|
29
94101-04000 WasherPLAIN, 4MM |
94101-04000 |
from US $0.37 |
||
