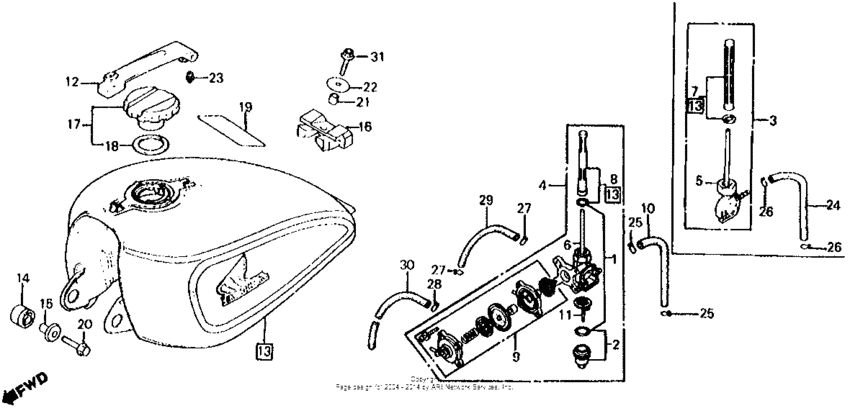

Cx500c fuel tank Diagram Honda CX500
- Year
- 1980
- Model code
- CX500C A
- Sales region
- USA
- Frame
- PC012100018 - PC012125022
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
16950-385-703 Cock assy.,fuel |
16950-385-703 |
from US $46.78 |
||
|
5
|
5
16951-385-703
Body comp.,cock
|
16951-385-703 |
— | ||
|
7
|
7
16952-388-015 Screew set,strn. |
16952-388-015 |
from US $33.03 |
||
|
12
|
12
17530-443-305
Lid set,fuel tank
|
17530-443-305 |
— | ||
|
13
|
13
17540-449-771ZA
Tank *r-106c-u*
|
17540-449-771ZA |
— | ||
|
13
|
13
17540-449-771ZB
Tank,fuel *nh-1*
|
17540-449-771ZB |
— | ||
|
13
|
13
17540-449-771ZC
Tank,*pb-110c-u*
|
17540-449-771ZC |
— | ||
|
14
|
14
17611-449-010 Cushion, fuel tank fr. |
17611-449-010 |
from US $4.74 |
||
|
15
|
15
17612-449-000
Collar, fr
|
17612-449-000 |
— | ||
|
16
|
16
17613-449-010
Cushion tank rr
|
17613-449-010 |
— | ||
|
17
|
17
17620-469-000
Cap comp filler
|
17620-469-000 |
— | ||
|
18
|
18
17632-422-000 Packing,fuel cap |
17632-422-000 |
US $11.54 |
||
|
19
|
19
87560-375-680ZF Mark (type-w) Remember (Clear-white) |
87560-375-680ZF |
from US $5.77 |
||
|
20
|
20
90111-362-000 Bolt, flange (8x36) |
90111-362-000 |
from US $2.14 |
||
|
21
|
21
90324-300-000 Collar (8mm) |
90324-300-000 |
from US $4.59 |
||
|
22
|
22
90534-011-000 Washer, 8.3mm |
90534-011-000 |
from US $2.22 |
||
|
24
|
24
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
26
|
26
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
31
|
31
95701-080-280-8 BoltFLANGE, 8X28 |
95701-080-280-8 |
from US $0.74 |
