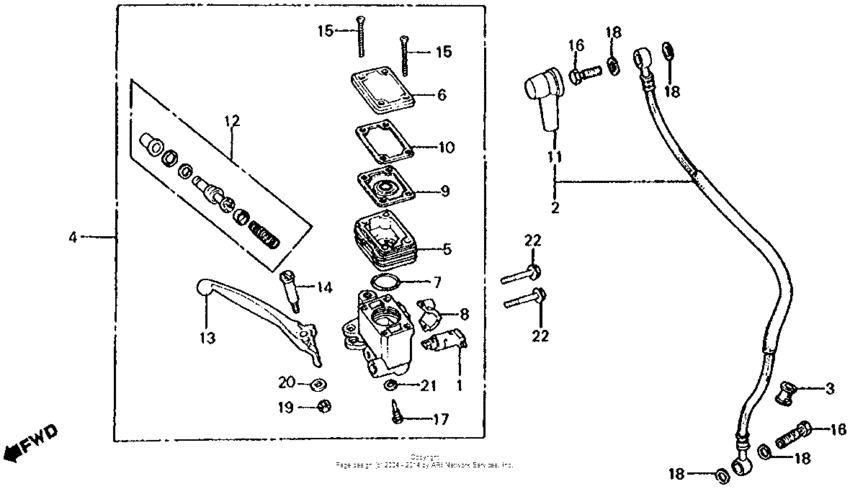

Fr. brake master cyl. 80 Diagram Honda CX500
- Year
- 1980
- Model code
- CX500C A
- Sales region
- USA
- Frame
- PC012100018 - PC012125022
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35340-422-013 Switch,fr.stop |
35340-422-013 |
US $19.58 |
||
|
2
|
2
45126-449-003
Hose,fr,brake,
|
45126-449-003 |
— | ||
|
3
|
3
45146-371-000 Bush, brake hose |
45146-371-000 |
US $4.47 |
||
|
4
|
4
45500-449-772
Cylinder,master
|
45500-449-772 |
— | ||
|
5
|
5
45511-463-006 Cup,oil |
45511-463-006 |
from US $40.92 |
||
|
6
|
6
45513-422-672
Cap,oil cup
|
45513-422-672 |
— | ||
|
7
|
7
45516-422-006 O-ring,39.7x3.5 |
45516-422-006 |
from US $10.79 |
||
|
8
|
8
45517-MA5-671 Holder |
45517-MA5-671 |
from US $13.74 |
||
|
9
|
9
45520-422-026 Diaphragm |
45520-422-026 |
US $21.13 |
||
|
10
|
10
45521-422-006 Plate,diaphragm |
45521-422-006 |
US $17.14 |
||
|
11
|
11
45522-422-000 Boot |
45522-422-000 |
from US $9.77 |
||
|
12
|
12
45530-463-305 Piston set,m/c. |
45530-463-305 |
US $76.04 |
||
|
13
|
13
53175-438-010
Lever,r.strg.hndl
|
53175-438-010 |
— | ||
|
14
|
14
90114-422-000
Bolt,hndl.lever
|
90114-422-000 |
— | ||
|
15
|
15
90137-422-006 Screw,cap,4x35 |
90137-422-006 |
from US $3.48 |
||
|
16
|
16
90145-300-010 Bolt, oil |
90145-300-010 |
from US $8.58 |
||
|
17
|
17
90183-422-000
Screw,pan,4x13.5
|
90183-422-000 |
— | ||
|
18
|
18
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
19
|
19
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
20
|
20
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
21
|
21
94111-04000 WasherSPRING, 4MM |
94111-04000 |
from US $0.37 |
||
|
22
|
22
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
