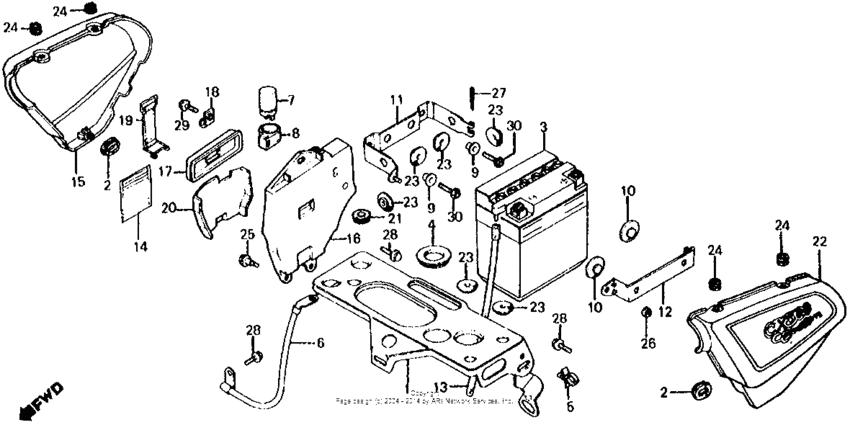

Cx500c side cover + battery Diagram Honda CX500
- Year
- 1981
- Model code
- CX500C A
- Sales region
- USA
- Frame
- JH2PC010*BM200006 - JH2PC010*BM212752
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17215-449-000
Pl,air/c holder
|
17215-449-000 |
— | ||
|
2
|
2
17247-303-000 Grommet a,cleaner |
17247-303-000 |
from US $5.48 |
||
|
3
|
3
31500-425-672AH Battery assy |
31500-425-672AH |
US $85.56 |
||
|
4
|
4
32112-611-000 Grommet, wire cord |
32112-611-000 |
US $3.15 |
||
|
5
|
5
32175-647-920 ClipWIRE HARNESS |
32175-647-920 |
US $2.50 |
||
| replacement | |||||
|
5
|
5
30701-883-000 Clip, high tension cord (8mm) |
30701-883-000 |
US $4.47 |
||
|
6
|
6
32601-415-000
Cable,earth
|
32601-415-000 |
— | ||
|
7
|
7
38300-MG2-008 Relay,assy winker |
38300-MG2-008 |
US $53.72 |
||
|
8
|
8
38306-292-000 Suspension |
38306-292-000 |
from US $4.07 |
||
|
9
|
9
40514-147-000
Collar,chain case
|
40514-147-000 |
— | ||
|
10
|
10
50327-300-000 Rubber b battery |
50327-300-000 |
from US $7.28 |
||
|
11
|
11
50327-449-750 Band,a,batteryUse up to Frame SN 212522 |
50327-449-750 |
US $29.99 |
||
|
11
|
11
50327-449-830
Band a,battery
Use from Frame SN 212523 |
50327-449-830 |
— | ||
|
12
|
12
50328-415-000
Band b,battery
|
50328-415-000 |
— | ||
|
13
|
13
50328-449-750
Tube,bat.brthr.
|
50328-449-750 |
— | ||
|
14
|
14
77251-342-000 Bag, service book |
77251-342-000 |
from US $4.44 |
||
|
15
|
15
83500-449-000ZD
Cover,r-r-107c-u*
|
83500-449-000ZD |
— | ||
|
15
|
15
83500-449-000ZE
Cvr, r. si *b100mu*
|
83500-449-000ZE |
— | ||
|
16
|
16
83501-449-000
Box,tool
|
83501-449-000 |
— | ||
|
17
|
17
83502-449-000
Box cover,tool
|
83502-449-000 |
— | ||
|
18
|
18
83503-449-000
Plate,tool set
|
83503-449-000 |
— | ||
|
19
|
19
83504-449-000
Band,tool.setting
|
83504-449-000 |
— | ||
|
20
|
20
83505-449-000
Box cover b,tool
|
83505-449-000 |
— | ||
|
21
|
21
83551-385-000
Grommet,cover
|
83551-385-000 |
— | ||
|
22
|
22
83600-449-000ZD
Cover,l*r-107c-u*
|
83600-449-000ZD |
— | ||
|
22
|
22
83600-449-000ZE
Cover,l*b-100m-u*
|
83600-449-000ZE |
— | ||
|
23
|
23
83618-323-000 Rubber, battery box |
83618-323-000 |
from US $1.40 |
||
|
24
|
24
83705-413-000 Grommet,setting |
83705-413-000 |
from US $3.26 |
||
|
25
|
25
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
26
|
26
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
27
|
27
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
28
|
28
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
29
|
29
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
30
|
30
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
