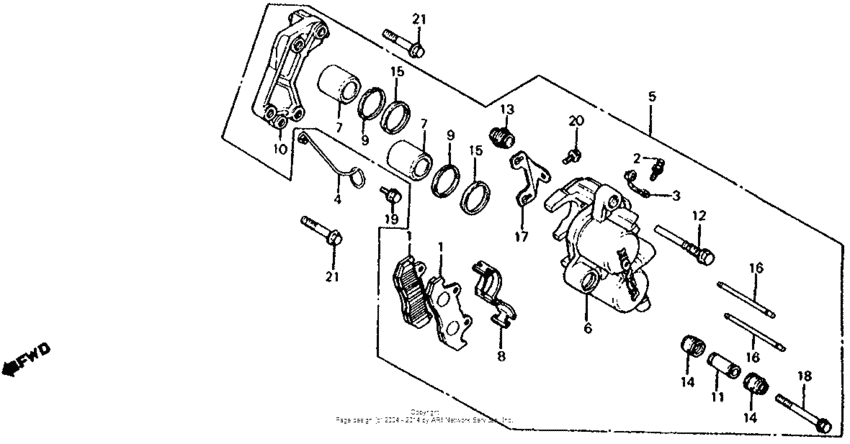

Cx500c front brake caliper 82 Diagram Honda CX500
- Year
- 1982
- Model code
- CX500C A
- Sales region
- USA
- Frame
- JH2PC010*BM300001 - JH2PC010*BM307398
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06455-MA3-405 Pad set, brake |
06455-MA3-405 |
US $51.17 |
||
| replacement | |||||
|
NI
|
NI
06435-MC7-405 Pad set |
06435-MC7-405 |
from US $95.05 |
||
|
1
|
1
45105-MM9-782 Pad, fr. |
45105-MM9-782 |
from US $30.19 |
||
|
2
|
2
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
3
|
3
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $1.40 |
||
|
4
|
4
44832-MA3-000
Clamp,spdmt.cable
|
44832-MA3-000 |
— | ||
|
5
|
5
45100-449-405
Caliper, l. fr.
|
45100-449-405 |
— | ||
|
6
|
6
45101-MA3-006
Caliper comp.,l.
|
45101-MA3-006 |
— | ||
|
7
|
7
45107-MA3-006 Piston |
45107-MA3-006 |
from US $32.64 |
||
|
8
|
8
45108-MA3-006 Spring, pad |
45108-MA3-006 |
from US $7.40 |
||
|
9
|
9
45109-166-006 Dust seal |
45109-166-006 |
from US $4 |
||
|
10
|
10
45110-449-841
Bracket, l. fr.
|
45110-449-841 |
— | ||
|
11
|
11
45111-MA3-006 Sleeve |
45111-MA3-006 |
from US $8.73 |
||
|
12
|
12
45131-MA3-006 Pin, bolt |
45131-MA3-006 |
from US $11.99 |
||
|
13
|
13
45133-MA3-006 Boot b |
45133-MA3-006 |
from US $2.54 |
||
|
14
|
14
45133-166-016 Boot, pin |
45133-166-016 |
from US $3.18 |
||
|
15
|
15
45209-166-006 SealPISTON |
45209-166-006 |
from US $4.07 |
||
|
16
|
16
45215-MA3-006 Pin (4.0mm) |
45215-MA3-006 |
from US $7.40 |
||
|
17
|
17
45217-MA3-006 Plate |
45217-MA3-006 |
from US $4.24 |
||
|
18
|
18
90180-MN8-006 Bolt, flange (8x49) |
90180-MN8-006 |
from US $2.41 |
||
|
19
|
19
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
20
|
20
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
21
|
21
95801-100-320-0 Bolt,flange,10x32 |
95801-100-320-0 |
from US $0.81 |
||
