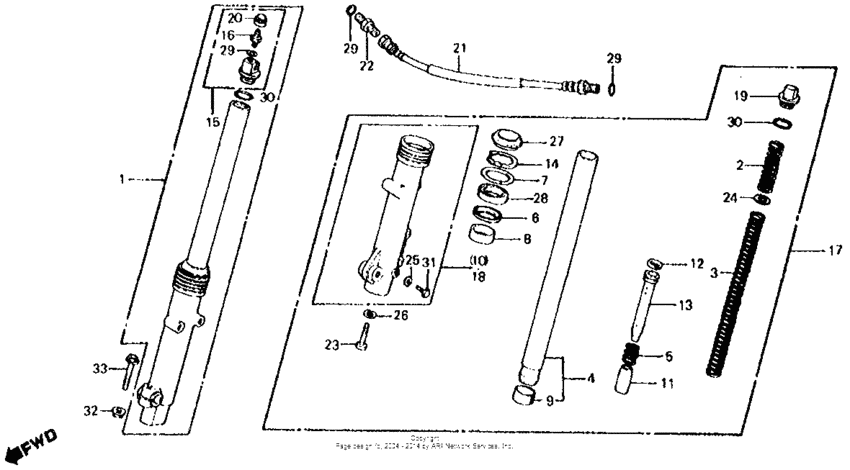

Cx500c front fork 81-82 Diagram Honda CX500
- Year
- 1982
- Model code
- CX500C A
- Sales region
- USA
- Frame
- JH2PC010*BM300001 - JH2PC010*BM307398
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-449-751
Fork assy., r. fr.
|
51400-449-751 |
— | ||
|
2
|
2
51401-449-751
Spg.a,fr.cushion
|
51401-449-751 |
— | ||
|
3
|
3
51402-449-751
Spg.b,fr.cushion
|
51402-449-751 |
— | ||
|
4
|
4
51410-449-751
Pipe comp,fr.fork
|
51410-449-751 |
— | ||
|
5
|
5
51412-340-000 Spring, fr |
51412-340-000 |
from US $4.14 |
||
|
6
|
6
51412-422-003 Ring, back-up |
51412-422-003 |
from US $5.48 |
||
|
7
|
7
51413-469-003 Plate,back up |
51413-469-003 |
US $5.62 |
||
|
8
|
8
51414-469-003 Bush, guide |
51414-469-003 |
from US $10.21 |
||
| replacement | |||||
|
8
|
8
51414-MBV-711 BushGUIDE |
51414-MBV-711 |
from US $11.25 |
||
|
9
|
9
51415-469-003 Bush,slider |
51415-469-003 |
US $21.76 |
||
|
10
|
10
51421-449-751
Case comp,r.bott
|
51421-449-751 |
— | ||
|
11
|
11
51432-461-771
Piece,oil lock
|
51432-461-771 |
— | ||
|
12
|
12
51437-400-771 Ring, piston |
51437-400-771 |
from US $4.30 |
||
|
13
|
13
51440-449-751
Pipe,seat
|
51440-449-751 |
— | ||
|
14
|
14
51447-469-003 Cir clip,internal |
51447-469-003 |
from US $5.18 |
||
|
15
|
15
51450-449-751
Bolt,fr.fork
|
51450-449-751 |
— | ||
|
16
|
16
51456-469-013 Valve, air |
51456-469-013 |
US $41.09 |
||
|
17
|
17
51500-449-751
Fork Assy., L. Fr.
|
51500-449-751 |
— | ||
|
18
|
18
51521-449-751
Case,l.bottom
|
51521-449-751 |
— | ||
|
19
|
19
51555-449-751
Bolt,l.fr.fork
|
51555-449-751 |
— | ||
|
20
|
20
52425-381-771 Cap, air valve |
52425-381-771 |
from US $4.59 |
||
|
21
|
21
53137-449-751
Hose,fr.fork join
|
53137-449-751 |
— | ||
|
22
|
22
53139-463-000 Connector |
53139-463-000 |
US $26.38 |
||
|
23
|
23
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
24
|
24
90504-356-000
Washer,16mm
|
90504-356-000 |
— | ||
|
25
|
25
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
26
|
26
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
27
|
27
91254-434-003 Dust seal,35mm |
91254-434-003 |
from US $11.19 |
||
|
28
|
28
91255-KBH-003 Seal,oil,35x48x11 |
91255-KBH-003 |
from US $11.99 |
||
|
29
|
29
91305-323-000 O-ring, 5.8x1.9 |
91305-323-000 |
from US $2.22 |
||
|
29
|
29
91318-ME5-003 O-ring, 5.6x1.9 (arai) |
91318-ME5-003 |
from US $3.18 |
||
|
30
|
30
91356-428-003 O-ring (25.7x2.8) |
91356-428-003 |
from US $3.92 |
||
|
31
|
31
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
32
|
32
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
33
|
33
95701-080-500-0 BoltFLANGE, 8X50 |
95701-080-500-0 |
from US $0.81 |
||
