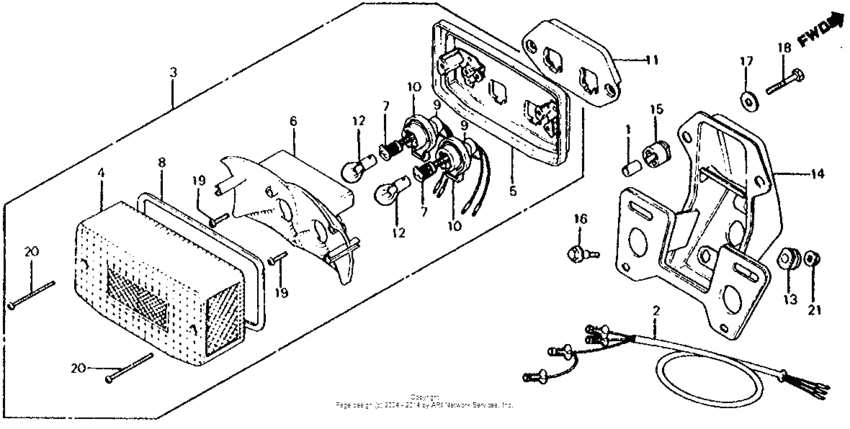

Cx500c taillight Diagram Honda CX500
- Year
- 1982
- Model code
- CX500C A
- Sales region
- USA
- Frame
- JH2PC010*BM300001 - JH2PC010*BM307398
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19024-692-000 CollarDISTANCE |
19024-692-000 |
US $2.39 |
||
|
2
|
2
32101-449-770
Harness,wire sub
|
32101-449-770 |
— | ||
|
3
|
3
33701-MC9-830
Unit,tail light
|
33701-MC9-830 |
— | ||
|
4
|
4
33702-425-771
Lens,taillight
|
33702-425-771 |
— | ||
|
5
|
5
33703-425-772 Base,comp,tail |
33703-425-772 |
US $37.18 |
||
|
6
|
6
33704-460-791
Reflector
|
33704-460-791 |
— | ||
|
7
|
7
33705-147-671
Cord,tall light
|
33705-147-671 |
— | ||
| replacement | |||||
|
7
|
7
33705-166-770 Cord,taillight |
33705-166-770 |
US $10.21 |
||
|
8
|
8
33708-425-771 Packing,lens |
33708-425-771 |
US $9.44 |
||
|
9
|
9
33710-425-772
Socket comp.
|
33710-425-772 |
— | ||
|
10
|
10
33711-425-771
Rubber,cushion
|
33711-425-771 |
— | ||
|
11
|
11
33718-425-771
Pkg,tail
|
33718-425-771 |
— | ||
|
12
|
12
34906-425-771 Bulb (12v27/8w) |
34906-425-771 |
from US $4.14 |
||
|
13
|
13
80101-283-000 Rubber, rr. fender cushion |
80101-283-000 |
from US $4.29 |
||
|
14
|
14
84701-449-770
Bracket,number
|
84701-449-770 |
— | ||
|
15
|
15
84905-333-000 Rubber, fender |
84905-333-000 |
from US $4.44 |
||
|
16
|
16
90113-449-000 Bolt, flange, 6x20 |
90113-449-000 |
from US $3.26 |
||
|
17
|
17
90545-323-700 Washer, 6.5x18 |
90545-323-700 |
from US $2.74 |
||
|
18
|
18
93000-060-280-A Bolt,hex.,6x28 |
93000-060-280-A |
US $0.52 |
||
|
19
|
19
93500-040-120-A ScrewPAN, 4X12 |
93500-040-120-A |
from US $0.37 |
||
|
20
|
20
93500-040-554-J Screw,pan,4x55 |
93500-040-554-J |
from US $0.44 |
||
|
21
|
21
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
