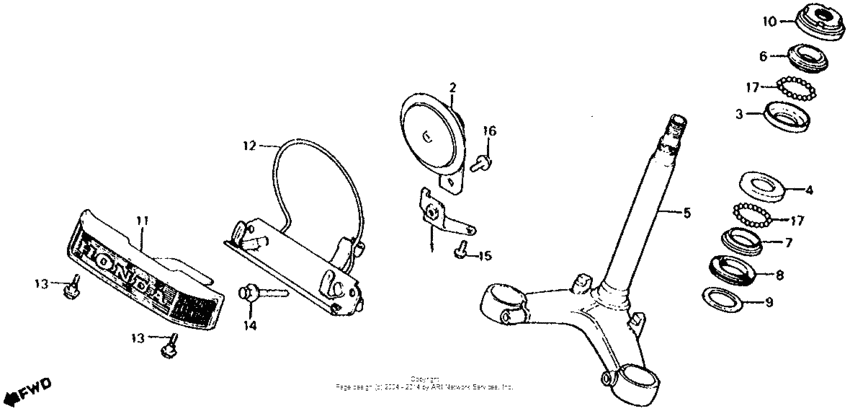

Steering stem + horn Diagram Honda CX500
- Year
- 1982
- Model code
- CX500C A
- Sales region
- USA
- Frame
- JH2PC010*BM300001 - JH2PC010*BM307398
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38102-449-000
Stay,horn
|
38102-449-000 |
— | ||
|
2
|
2
38110-KY0-621
Horn
|
38110-KY0-621 |
— | ||
|
3
|
3
50301-268-010 Race, steering ball |
50301-268-010 |
from US $11.84 |
||
|
4
|
4
50302-268-010 Race, steering ball |
50302-268-010 |
from US $11.64 |
||
|
5
|
5
53200-449-750ZA
Stem,strg*nh-105*
|
53200-449-750ZA |
— | ||
|
6
|
6
53211-268-010 Race, steering cone |
53211-268-010 |
from US $14.42 |
||
|
7
|
7
53212-250-010 Race, steering cone |
53212-250-010 |
from US $11.84 |
||
|
8
|
8
53214-250-000 Dust seal |
53214-250-000 |
US $3.18 |
||
| replacements | |||||
|
8
|
8
53124-250-000 Dust-seal |
53124-250-000 |
from US $3.77 |
||
|
8
|
8
53214-K0T-J00 DUST SEAL |
53214-K0T-J00 |
from US $4.79 |
||
|
9
|
9
53215-250-000 Washer |
53215-250-000 |
from US $3.07 |
||
|
10
|
10
53220-286-000 Thread (upper) |
53220-286-000 |
from US $21.42 |
||
|
11
|
11
61401-449-010
Cover,fr.
|
61401-449-010 |
— | ||
|
12
|
12
61405-449-840
Stay, fr. cover
|
61405-449-840 |
— | ||
|
13
|
13
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
14
|
14
93481-080-400-0 Bolt-washer,8x40 |
93481-080-400-0 |
US $0.74 |
||
|
15
|
15
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
16
|
16
95701-0801200 Bolt, flange, 8x12 |
95701-0801200 |
from US $0.62 |
||
|
17
|
17
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
