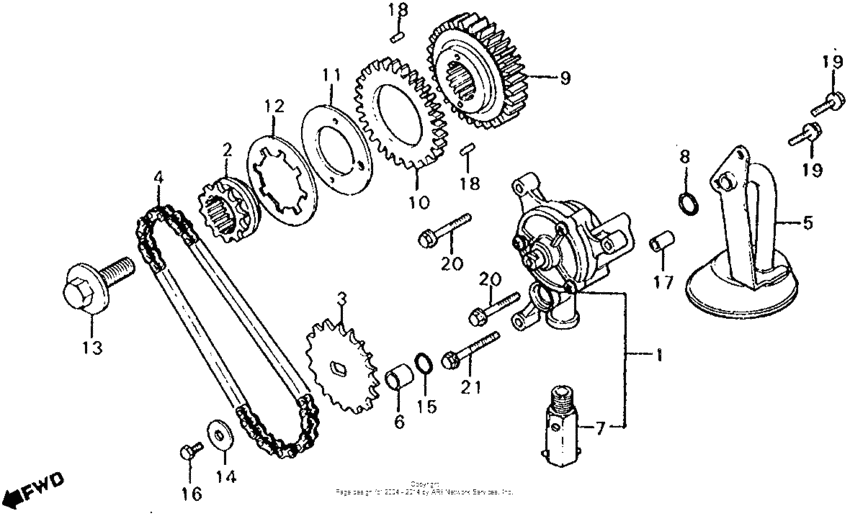

Oil pump + primary drive gear Diagram Honda CX500
- Year
- 1981
- Model code
- CX500D A
- Sales region
- USA
- Frame
- JH2PC011*BM200011 - JH2PC011*BM205030
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-415-000
Pump assy.,oil
|
15100-415-000 |
— | ||
|
1
|
1
15100-MA1-000
Pump assy.,oil
|
15100-MA1-000 |
— | ||
|
2
|
2
15115-415-000
Spro,oilpumpdrive
|
15115-415-000 |
— | ||
|
3
|
3
15116-415-000
Spro,oilpumpdrive
|
15116-415-000 |
— | ||
|
4
|
4
15140-415-003 Chain, oil pump |
15140-415-003 |
from US $23.28 |
||
|
5
|
5
15141-415-000
Body,oil strainer
|
15141-415-000 |
— | ||
|
6
|
6
15155-300-000 Collar, o-ring |
15155-300-000 |
from US $3.11 |
||
|
7
|
7
15220-415-000
Valve,relief
|
15220-415-000 |
— | ||
|
8
|
8
91302-ZE9-003 O-ring, 11.8x2.4 |
91302-ZE9-003 |
from US $1.07 |
||
|
8
|
8
91320-MJ6-003 O-ring (11.8x2.4) |
91320-MJ6-003 |
from US $3.70 |
||
|
9
|
9
23121-449-000
Gear primary
|
23121-449-000 |
— | ||
|
10
|
10
23122-415-000
Sub gear,primary
|
23122-415-000 |
— | ||
|
11
|
11
23123-415-000
Plate,side
|
23123-415-000 |
— | ||
|
12
|
12
23124-415-003
Spring,disk
|
23124-415-003 |
— | ||
|
13
|
13
90013-415-000 Bolt, ubs (12x28) |
90013-415-000 |
from US $8.88 |
||
|
14
|
14
90486-028-000 Washer, spark advancer setting |
90486-028-000 |
from US $2.65 |
||
|
15
|
15
91301-268-020 O ring, 14m/m |
91301-268-020 |
from US $4.07 |
||
|
16
|
16
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
17
|
17
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
18
|
18
94302-03050 Pin,knock |
94302-03050 |
US $0.81 |
||
|
19
|
19
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
20
|
20
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
||
|
21
|
21
95701-0603200 Bolt, flange, 6x32 |
95701-0603200 |
from US $0.59 |
