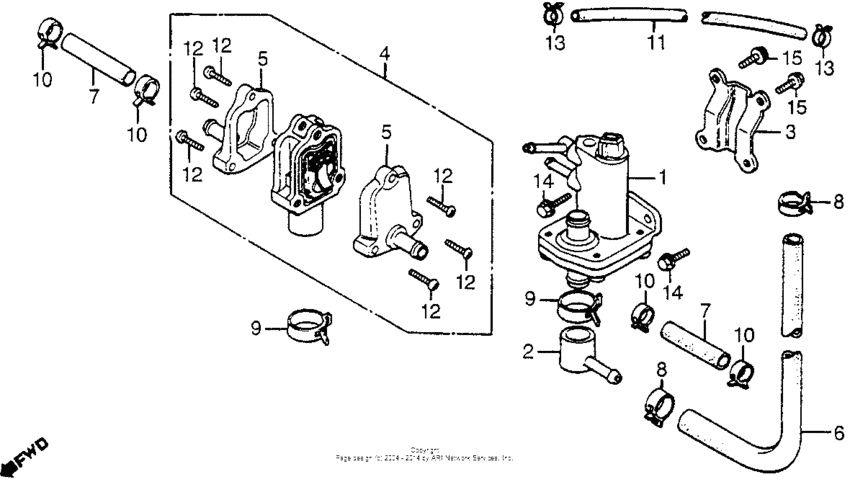

Air valve + reed valve Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17810-MC7-003
Valve,air
|
17810-MC7-003 |
— | ||
|
2
|
2
17812-MC7-000
Joint, l. air valve
|
17812-MC7-000 |
— | ||
|
3
|
3
17819-MC7-000
Stay, air valve
|
17819-MC7-000 |
— | ||
|
4
|
4
17820-MG9-952
Valve assy., reed
|
17820-MG9-952 |
— | ||
|
5
|
5
17822-MC7-003
Cover, reed valve
|
17822-MC7-003 |
— | ||
|
6
|
6
17831-MC7-000
Hose (10x280)
|
17831-MC7-000 |
— | ||
|
7
|
7
17832-MC7-000
Hose,7.5x46
|
17832-MC7-000 |
— | ||
|
8
|
8
17834-MC7-000
Clamp
|
17834-MC7-000 |
— | ||
|
9
|
9
17835-MC7-000
Clamp
|
17835-MC7-000 |
— | ||
|
10
|
10
17836-MC7-000
Clamp
|
17836-MC7-000 |
— | ||
|
11
|
11
19522-MC7-000
Tube,5x140
|
19522-MC7-000 |
— | ||
|
12
|
12
93500-040140A Screw, pan, 4x14 |
93500-040140A |
from US $0.37 |
||
|
13
|
13
95002-410-500-8 ClampTUBE(D10.5) |
95002-410-500-8 |
from US $0.74 |
||
|
14
|
14
96001-060-100-0 BoltFLANGE, 6X10 |
96001-060-100-0 |
from US $0.59 |
||
|
15
|
15
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
