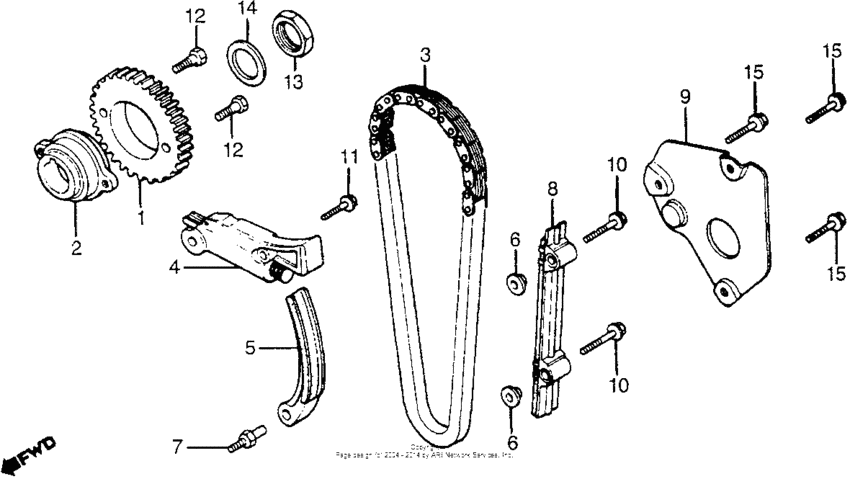

Cam chain + tensioner Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14321-415-000
Sprocket,cam
|
14321-415-000 |
— | ||
|
2
|
2
14322-415-000
Boss,cam sprocket
|
14322-415-000 |
— | ||
|
3
|
3
14401-MA1-013
Chain,cam
|
14401-MA1-013 |
— | ||
|
4
|
4
14500-MC7-010
Tensioner,camchai
|
14500-MC7-010 |
— | ||
|
5
|
5
14511-MC7-000
Tensioner,chain
|
14511-MC7-000 |
— | ||
|
6
|
6
14515-428-000
Collar,6x14.7
|
14515-428-000 |
— | ||
|
7
|
7
14538-MC7-000
Pin,tensioner set
|
14538-MC7-000 |
— | ||
|
8
|
8
14620-MC7-000
Guide,cam chain
|
14620-MC7-000 |
— | ||
|
9
|
9
14623-MC7-000
Plate,cam chain
|
14623-MC7-000 |
— | ||
|
10
|
10
90011-415-000 Bolt,hex,6x30 |
90011-415-000 |
US $3.70 |
||
|
11
|
11
90015-MC7-000
Bolt,flange,8x32
|
90015-MC7-000 |
— | ||
|
12
|
12
90081-415-000
Bolt,hex kno 7x17
|
90081-415-000 |
— | ||
|
13
|
13
90241-MJ8-000
Nut,lock 20mm
|
90241-MJ8-000 |
— | ||
|
14
|
14
90432-121-000 Washer, lock |
90432-121-000 |
from US $2.89 |
||
|
15
|
15
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
