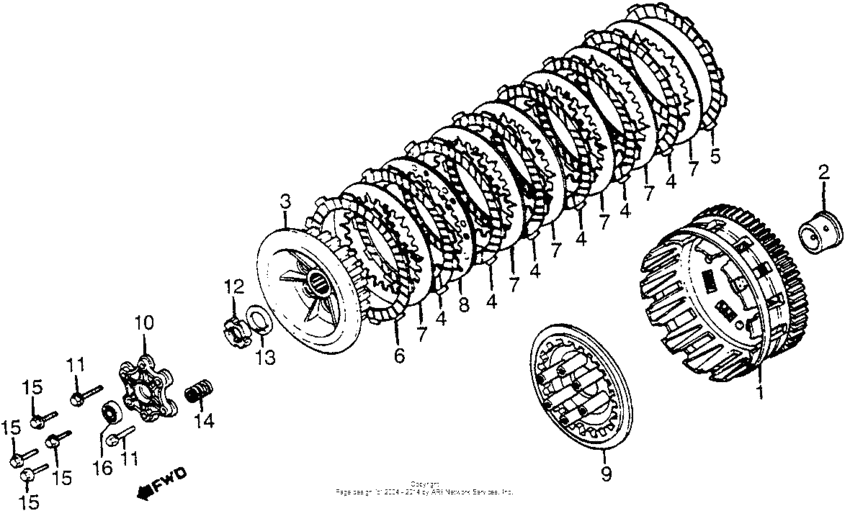

Clutch Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-MC7-010
Outer comp,clutch
|
22100-MC7-010 |
— | ||
|
2
|
2
22116-MC7-000
Guide,clutch out.
|
22116-MC7-000 |
— | ||
|
3
|
3
22120-MC7-000
Center,clutch
|
22120-MC7-000 |
— | ||
|
4
|
4
22201-MC7-000
Disk.clch frictio
|
22201-MC7-000 |
— | ||
|
5
|
5
22201-MG9-000 Disk a, cl friction |
22201-MG9-000 |
from US $14.82 |
||
|
6
|
6
22202-463-000
Disk b friction
|
22202-463-000 |
— | ||
|
7
|
7
22321-371-010 Plate a, clutch |
22321-371-010 |
from US $29.43 |
||
|
8
|
8
22322-463-000
Plate b,clutch
|
22322-463-000 |
— | ||
|
9
|
9
22350-MC7-000
Pl.,clutch press.
|
22350-MC7-000 |
— | ||
|
10
|
10
22360-463-000
Plate, clutch lifter
|
22360-463-000 |
— | ||
|
11
|
11
90008-422-000
Bolt,flange,6x32
|
90008-422-000 |
— | ||
|
12
|
12
90204-426-000
Nut, lock (20mm)
|
90204-426-000 |
— | ||
|
13
|
13
90432-121-000 Washer, lock |
90432-121-000 |
from US $2.89 |
||
|
14
|
14
95014-75140 Spring,clutch |
95014-75140 |
from US $1.63 |
||
|
15
|
15
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
16
|
16
96100-6203000 Bearing, radial ball, 6203 |
96100-6203000 |
from US $6.07 |
