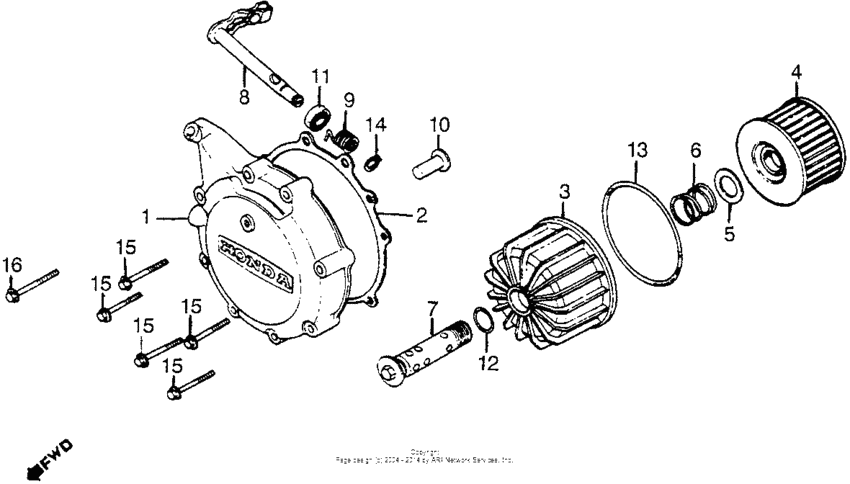

Clutch cover + oil filter Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11370-MC7-000
Cover, Clutch
|
11370-MC7-000 |
— | ||
|
2
|
2
11372-MC7-306
Gasket, clutch cover
|
11372-MC7-306 |
— | ||
|
3
|
3
15411-MC7-000
Case,oil filter
|
15411-MC7-000 |
— | ||
|
4
|
4
154A1-413-005 Element set,oil |
154A1-413-005 |
from US $9.47 |
||
| replacement | |||||
|
4
|
4
154A1-413-505 Element, oil filter |
154A1-413-505 |
from US $11.73 |
||
|
4
|
4
154A1-415-000 Element set,oil |
154A1-415-000 |
US $15.35 |
||
|
5
|
5
15414-300-000 Seat |
15414-300-000 |
from US $2.44 |
||
|
6
|
6
15415-413-000 Spring |
15415-413-000 |
from US $3.26 |
||
|
7
|
7
15420-MA6-000 Bolt,oilfilt.ctr. |
15420-MA6-000 |
US $44.74 |
||
|
7
|
7
15420-415-000 Bolt,oil filter |
15420-415-000 |
from US $44.74 |
||
| replacement | |||||
|
7
|
7
15420-MA6-000 Bolt,oilfilt.ctr. |
15420-MA6-000 |
US $44.74 |
||
|
8
|
8
22811-MC7-000
Shaft,clutch lev.
|
22811-MC7-000 |
— | ||
|
9
|
9
22815-413-000 Spring, clutch lever |
22815-413-000 |
from US $3.26 |
||
|
10
|
10
22847-MC7-000
Rod,clutch lifter
|
22847-MC7-000 |
— | ||
|
11
|
11
91201-706-003
Oil seal,12x18x4
|
91201-706-003 |
— | ||
|
12
|
12
91302-377-000 O-ring (15x2.5) |
91302-377-000 |
from US $5.18 |
||
|
13
|
13
91315-MA6-003 O-ring,81x4.5 |
91315-MA6-003 |
from US $2.89 |
||
|
14
|
14
94510-10000 CirclipEXTERNAL, 10MM |
94510-10000 |
from US $0.44 |
||
|
15
|
15
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
16
|
16
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
