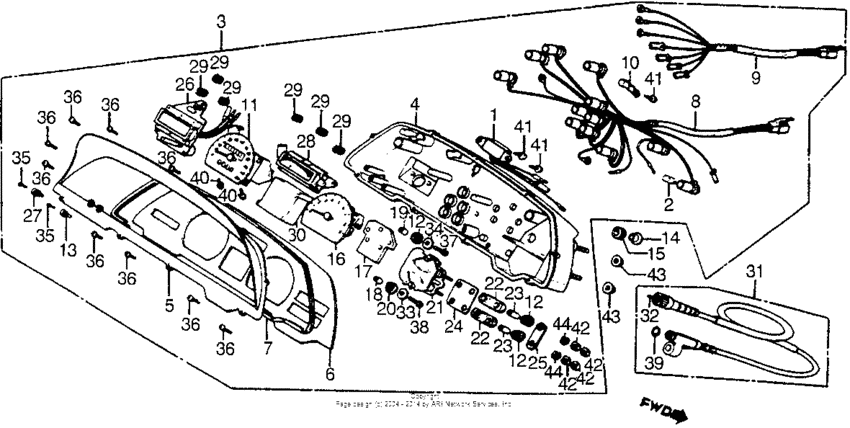

Combination instrument Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31410-MC7-611
Regulator 7v
|
31410-MC7-611 |
— | ||
|
2
|
2
37237-SA5-003 Bulb14V 3.4W) (NS |
37237-SA5-003 |
from US $2.15 |
||
|
3
|
3
37100-MC7-671
Instrument assy.
|
37100-MC7-671 |
— | ||
|
4
|
4
37101-MC7-611
Case
|
37101-MC7-611 |
— | ||
|
5
|
5
37102-MC7-611
Glass
|
37102-MC7-611 |
— | ||
|
6
|
6
37103-MC7-611
Plate,reflecting
|
37103-MC7-611 |
— | ||
|
7
|
7
37104-MC7-611
Packing,meter
|
37104-MC7-611 |
— | ||
|
8
|
8
37105-MC7-611
Socket comp.a
|
37105-MC7-611 |
— | ||
|
9
|
9
37106-MC7-611
Socket comp.b
|
37106-MC7-611 |
— | ||
|
10
|
10
37107-MC7-611
Clamp
|
37107-MC7-611 |
— | ||
|
11
|
11
37200-MC7-671
Speedometer assy
|
37200-MC7-671 |
— | ||
|
12
|
12
37203-MC7-611
Rubber
|
37203-MC7-611 |
— | ||
|
13
|
13
37204-MC7-612
Knob, trip meter
|
37204-MC7-612 |
— | ||
|
14
|
14
37243-MC7-000
Collar
|
37243-MC7-000 |
— | ||
|
15
|
15
37244-MC7-000
Rubber,mater set.
|
37244-MC7-000 |
— | ||
|
16
|
16
37250-ME7-610
Tachometer assy.
|
37250-ME7-610 |
— | ||
|
17
|
17
37253-MC7-611
Rubber, tachometer
|
37253-MC7-611 |
— | ||
|
18
|
18
37254-MC7-611
Collar
|
37254-MC7-611 |
— | ||
|
19
|
19
37255-MC7-611
Collar, tachometer
|
37255-MC7-611 |
— | ||
|
20
|
20
37256-MC7-611
Gasket, tachometer
|
37256-MC7-611 |
— | ||
|
21
|
21
37300-MC7-611
Fuel temp.meter
|
37300-MC7-611 |
— | ||
|
22
|
22
37302-MC7-611
Cush.,fuel temp.
|
37302-MC7-611 |
— | ||
|
23
|
23
37303-MC7-611
Collar
|
37303-MC7-611 |
— | ||
|
24
|
24
37304-MC7-611
Stay
|
37304-MC7-611 |
— | ||
|
25
|
25
37305-MC7-611
Washer
|
37305-MC7-611 |
— | ||
|
26
|
26
37460-MC7-611 Meter assy.,hour |
37460-MC7-611 |
US $530.82 |
||
|
27
|
27
37461-MC7-612
Knob, clock meter
|
37461-MC7-612 |
— | ||
|
28
|
28
37490-MC7-611
Meter assy.,turbo
|
37490-MC7-611 |
— | ||
|
29
|
29
37491-MC7-611
Rub,turbo clock
|
37491-MC7-611 |
— | ||
|
30
|
30
37600-MC7-611 Indicator assy. |
37600-MC7-611 |
US $96.46 |
||
|
31
|
31
44830-MC7-000
Cable assy,spdmt.
|
44830-MC7-000 |
— | ||
|
32
|
32
44831-MJ8-300
Cable,inner
|
44831-MJ8-300 |
— | ||
|
33
|
33
90101-MC7-611
Washer (4.3x12.5)
|
90101-MC7-611 |
— | ||
|
34
|
34
90102-MC7-611
Washer (3.3x12)
|
90102-MC7-611 |
— | ||
|
35
|
35
90600-MC7-612
Screw, flat (2.3x8)
|
90600-MC7-612 |
— | ||
|
36
|
36
90890-MC7-611
Screw-washer,3x14
|
90890-MC7-611 |
— | ||
|
37
|
37
90891-MC7-611
Screw-washer (3x20)
|
90891-MC7-611 |
— | ||
|
38
|
38
90892-MC7-611
Screw-washer (4x20)
|
90892-MC7-611 |
— | ||
|
39
|
39
91306-PJ4-000 O-ring6.8X1.9 |
91306-PJ4-000 |
from US $1.78 |
||
|
40
|
40
93893-0400800 Screw-washer, 4x8 |
93893-0400800 |
from US $0.52 |
||
|
41
|
41
93903-24320 ScrewTAPPING, 4X12 |
93903-24320 |
from US $0.13 |
||
|
42
|
42
94002-040-000-S NutHEX., 4MM |
94002-040-000-S |
from US $0.37 |
||
|
43
|
43
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
44
|
44
94111-04800 WasherSPRING, 4MM |
94111-04800 |
from US $0.37 |
