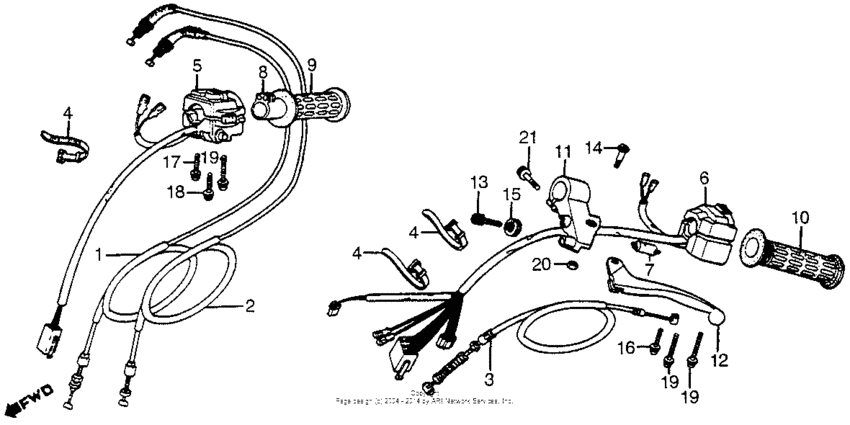

Control levers + cables + switches Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-ME7-000
Cable A, Throttle
|
17910-ME7-000 |
— | ||
|
2
|
2
17920-ME7-000
Cable B, Throttle
|
17920-ME7-000 |
— | ||
|
3
|
3
22870-MC7-000
Cable comp,clutch
|
22870-MC7-000 |
— | ||
|
4
|
4
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
5
|
5
35130-MC7-671
Switch assy
|
35130-MC7-671 |
— | ||
|
6
|
6
35200-MC7-671
Switch, turn signal
|
35200-MC7-671 |
— | ||
|
7
|
7
35330-413-003 Switch, fr. lever |
35330-413-003 |
from US $14.96 |
||
|
8
|
8
53141-422-000 Pipe, throttle grip |
53141-422-000 |
from US $12.64 |
||
|
9
|
9
53165-422-000 Grip, r. handle |
53165-422-000 |
from US $8.21 |
||
|
10
|
10
53166-422-305 Grip, l. handle |
53166-422-305 |
from US $16.08 |
||
|
11
|
11
53172-MC7-003
Brkt,l.hndl.lever
|
53172-MC7-003 |
— | ||
|
12
|
12
53178-461-000
Lever,l.strg.hndl
|
53178-461-000 |
— | ||
|
13
|
13
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.85 |
||
|
14
|
14
90113-422-000 Bolt,hndl,lever |
90113-422-000 |
from US $7.10 |
||
|
15
|
15
90321-315-670 Nut, fixing |
90321-315-670 |
from US $5.83 |
||
|
16
|
16
93891-0503007 Screw-washer (5x30) |
93891-0503007 |
from US $0.52 |
||
|
17
|
17
93891-050-320-0 Screw-washer5x32 |
93891-050-320-0 |
from US $0.52 |
||
|
17
|
17
93891-050-320-7 Screw-washer,5x32 |
93891-050-320-7 |
from US $0.52 |
||
|
18
|
18
93891-050-400-7 Screw-wash,5x40 |
93891-050-400-7 |
US $0.52 |
||
|
19
|
19
93891-050-450-7 Screw-washer, 5x45 |
93891-050-450-7 |
from US $0.59 |
||
|
20
|
20
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
21
|
21
95701-060-250-7 BoltFLANGE, 6X25 |
95701-060-250-7 |
from US $0.59 |
