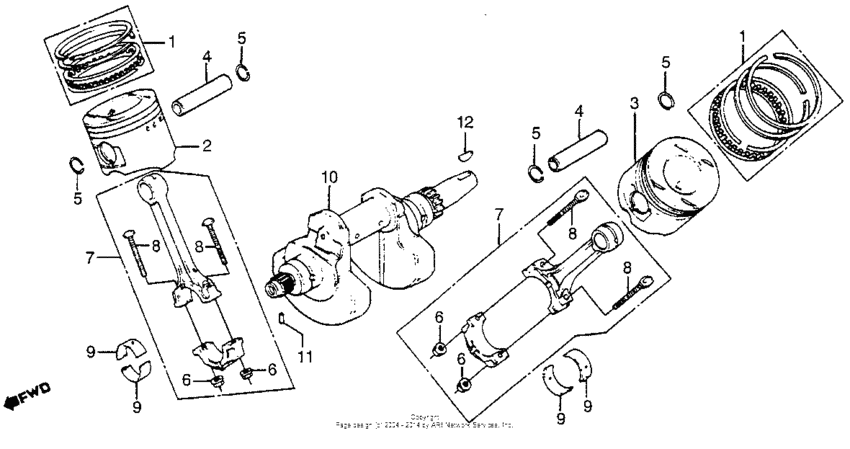

Crankshaft + piston Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13011-MC7-004
Ring set (std)
|
13011-MC7-004 |
— | ||
|
1
|
1
13012-MC7-004
Ring set (os) (0.25)
|
13012-MC7-004 |
— | ||
|
1
|
1
13013-MC7-004
Ring set (os) (0.50)
|
13013-MC7-004 |
— | ||
|
2
|
2
13101-MC7-003
Piston, r. (std)
|
13101-MC7-003 |
— | ||
|
2
|
2
13103-MC7-000
Piston,r.(0.25)
|
13103-MC7-000 |
— | ||
|
2
|
2
13105-MC7-000
Piston,r.(0.50)
|
13105-MC7-000 |
— | ||
|
3
|
3
13102-MC7-003
Piston, l. (std)
|
13102-MC7-003 |
— | ||
|
3
|
3
13104-MC7-000
Piston,l.(0.25)
|
13104-MC7-000 |
— | ||
|
3
|
3
13106-MC7-000
Piston,l.(0.50)
|
13106-MC7-000 |
— | ||
|
4
|
4
13111-MC7-000
Pin,piston
|
13111-MC7-000 |
— | ||
|
5
|
5
13112-MC7-000 Clip (22mm) |
13112-MC7-000 |
from US $2.15 |
||
|
6
|
6
13205-634-010 Nut |
13205-634-010 |
from US $3.34 |
||
|
7
|
7
13210-MC7-000
Rod assy,conn.
|
13210-MC7-000 |
— | ||
|
8
|
8
13213-MS2-610 Bolt, connecting rod |
13213-MS2-610 |
from US $5.18 |
||
|
9
|
9
13216-MC7-003
Brg.,b conn-rod
|
13216-MC7-003 |
— | ||
|
9
|
9
13217-MC7-003
Brg.,c.conn-rod
|
13217-MC7-003 |
— | ||
|
9
|
9
13218-MC7-003
Brg.,d.conn-rod
|
13218-MC7-003 |
— | ||
|
9
|
9
13219-MC7-003
Brg.,e.conn-rod
|
13219-MC7-003 |
— | ||
|
9
|
9
13220-MC7-003
Brg.,f.conn rod
|
13220-MC7-003 |
— | ||
|
10
|
10
13300-MC7-000
Crankshaft comp.
|
13300-MC7-000 |
— | ||
|
11
|
11
30905-216-000 Pin (3x5.2) |
30905-216-000 |
from US $2.72 |
||
|
12
|
12
94401-25180 Key, woodruff, 25x18 |
94401-25180 |
from US $0.81 |
