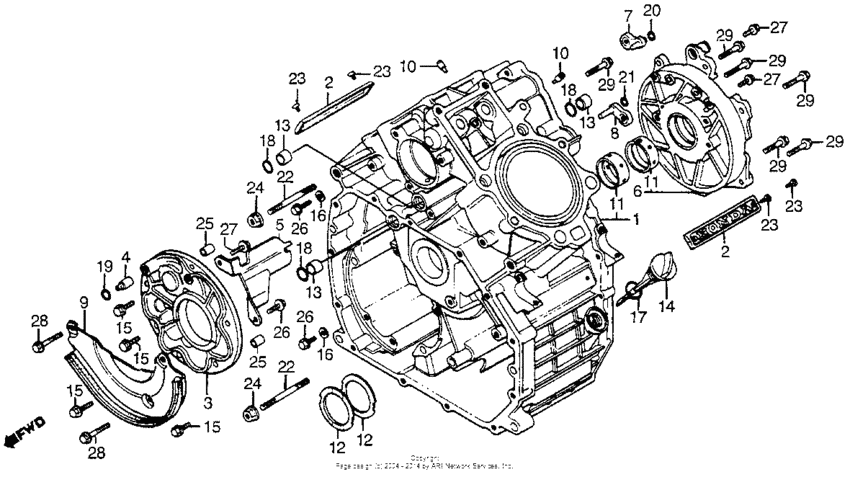

Cylinder block Diagram Honda CX500
- Year
- 1982
- Model code
- CX500TC A
- Sales region
- USA
- Frame
- JH2PC030*CM000017 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-MC7-000
Crankcase, r.
|
11100-MC7-000 |
— | ||
|
2
|
2
11105-MC7-000
Emb, cylinder block
|
11105-MC7-000 |
— | ||
|
3
|
3
11131-MC7-000
Holder, transmission
|
11131-MC7-000 |
— | ||
|
4
|
4
11132-MC7-000
Orifice (8mm)
|
11132-MC7-000 |
— | ||
|
5
|
5
11133-MC7-000
Plate, trans holder
|
11133-MC7-000 |
— | ||
|
6
|
6
11140-MC7-000
Cap, crankshaft
|
11140-MC7-000 |
— | ||
|
7
|
7
11146-MC7-000
Jet, r. oil
|
11146-MC7-000 |
— | ||
|
8
|
8
11147-MC7-000
Jet, l. oil
|
11147-MC7-000 |
— | ||
|
9
|
9
11365-MC7-000 Separator, oil |
11365-MC7-000 |
US $25.22 |
||
|
10
|
10
12901-413-000
Valve
|
12901-413-000 |
— | ||
|
11
|
11
13323-MC7-305
Brg a,main
|
13323-MC7-305 |
— | ||
|
11
|
11
13324-MC7-305
Brg b,main
|
13324-MC7-305 |
— | ||
|
11
|
11
13325-MC7-305
Bearing c,main
|
13325-MC7-305 |
— | ||
|
12
|
12
13326-MC7-003
Washer, crank side
|
13326-MC7-003 |
— | ||
|
13
|
13
15155-300-000 Collar, o-ring |
15155-300-000 |
from US $3.11 |
||
|
14
|
14
15650-MK7-670
Dipstick, oil
|
15650-MK7-670 |
— | ||
|
15
|
15
90003-MB2-000 Bolt,flange,6x20 |
90003-MB2-000 |
US $3.33 |
||
|
16
|
16
90463-KRM-840 Washer (6.2mm) |
90463-KRM-840 |
from US $1.84 |
||
|
17
|
17
91307-425-003 O-ring21.5X3.2 |
91307-425-003 |
from US $1.67 |
||
|
18
|
18
91301-268-020 O ring, 14m/m |
91301-268-020 |
from US $4.07 |
||
|
19
|
19
91306-HB3-003 O-ring (8x1.7) |
91306-HB3-003 |
from US $2.15 |
||
|
20
|
20
91308-MC7-000 O-ring, 8.2x1.5 |
91308-MC7-000 |
from US $2.09 |
||
|
21
|
21
91308-371-003 O-ring4.1X1.5 |
91308-371-003 |
from US $3.47 |
||
|
22
|
22
92900-10040-0B BoltSTUD, 10X40 |
92900-10040-0B |
from US $1.04 |
||
|
23
|
23
93902-34110 Screw,tapping,4x8 |
93902-34110 |
US $0.37 |
||
|
24
|
24
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
25
|
25
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
26
|
26
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
27
|
27
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
28
|
28
95701-0603200 Bolt, flange, 6x32 |
95701-0603200 |
from US $0.59 |
||
|
29
|
29
95701-080-250-0 BoltFLANGE, 8X25 |
95701-080-250-0 |
from US $0.74 |
